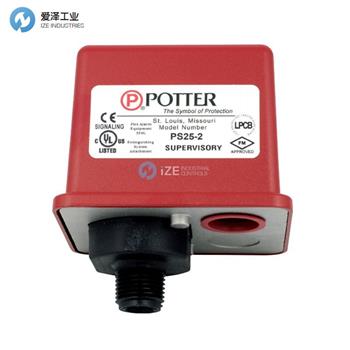

POTTER 防爆壓力開關PS25-2規格
Dimensions | 3.78”(9,6cm)Wx3.20”(8,1cm)Dx4.22”(10,7cm)H |
Differential | Typical 1 lb. at 10 PSI (,07 at ,7 BAR) |
Enclosure | Cover: Die Cast Finish: Red Powder Coat Base: Die Cast |
Cover Tamper | Cover incorporates tamper resistant fastener that requires a special key for removal. One key is supplied with each device. |
Factory Adjustment | PS25-2 operates on increase at 28 PSI (1,9 BAR) and on decrease at 18 PSI (1,2 BAR) |
Contact Ratings | (2) SPDT (Form C) Switches |
Environmental Limitations | -40o F to 140oF (-40oC to 60oC) |
Conduit Entrances | Two knockouts for 1/2” conduit provided. Individual switch compartments and ground screw suitable for dissimilar voltages |
Service Use | NFPA 13, 13D, 13R, 72 |
Pressure Connection | Nylon 1/2” NPT male |
Pressure Range | 10-60 PSI (,7-4,1 BAR) |
Maximum System Pressure | 300 PSI (20,68 BAR) |
POTTER 防爆壓力開關PS25-2產品介紹
The Potter PS25 Series Supervisory Pressure Actuated Switches are designed primarily to detect an increase and/or decrease from normal system pressure in automatic fire sprinkler systems. Typical applications are: air/nitrogen supervision in dry pipe and pre-action systems, pressure tanks, air supplies, and water supplies. The PS25-2 has two switches. The Low switch is factory set to activate at approximately 18 psi (1,2 BAR) on a decrease in pressure. The High switch is factory set to activate at approximately 28 psi (1,9 BAR) on an increase in pressure. NFPA 72 requires a supervisory signal for both high and low pressure conditions. The PS25 is factory set for a normal air pressure of 23 psi.
POTTER PS25系列監控壓力致動開關主要用于檢測自動消防灑水系統中正常系統壓力的增加和/或減少。典型應用包括：干管和預作用系統中的空氣/氮?dú)獗O(jiān)控，壓力罐，空氣供應和水供應。PS25-2有兩個開關。低壓開關出廠設置為在壓力降低時以約18 psi（1,2 BAR）的速度激活。高壓力開關出廠設置為在壓力升高時以約28 psi（1.9 BAR）的速度激活。NFPA 72需要高壓和低壓條件下的監控信號。PS25出廠設置為23 psi的正常氣壓。
POTTER 防爆壓力開關其他型號：
POTTER PS100-1
POTTER PS25-2
POTTER PS25-1
POTTER PS40-2
