POTTER 防爆壓力開關PS15-2規格
Dimensions: | 3.78" (9.6cm)W x 3.20" (8.1cm)D x 4.22" (10.7cm)H |
Conduit Entrance: | Two knockouts provided for 1/2" conduit.Individual switch compartments and ground screw suitable for dissimilar voltages. |
Enclosure: | Cover- Die-cast with textured red powdercoat finish, single cover screw and rain lip. |
Pressure Connection: | Nylon 1/2" NPT male |
Factory Adjustment: | LOW switch operates at approximately 10 psi (0,7 BAR) on decreasing pressure. HIGH switch operates at approximately 20 psi (1,4 BAR) on increasing pressure. |
Pressure Range: | 5-30 PSI (0,35 - 2,07 BAR) |
Differential: | Typical 1 lb. at 5 PSI (,07 at 0,34 BAR) |
Maximum System Pressure: | 300 PSI (20,68 BAR) |
Switch Contacts: | SPDT (Form C) |
Environmental Specifications: | NEMA 4/IP66 Rated Enclosure - indoor or outdoor when used with NEMA-4 conduit fittings. |
Tamper: | Cover incorporates tamper resistant fastener that requires a special key for removal. One key is supplied with each device. |
POTTER 防爆壓力開關PS15-2產品介紹
The Potter PS15 Series Supervisory Pressure Actuated Switches are designed primarily to detect an increase and/or decrease from normal system pressure in automatic fire sprinkler systems. Typical applications are: air/nitrogen supervision in Dry pipe and pre-action systems, pressure tanks, air supplies, and water supplies. The PS15 has two switches. The Low switch is factory set to activate at approximately 10 psi (0,35 BAR) on a decrease in pressure. The High switch is factory set to activate at approximately 20 psi (1,4 BAR) on an increase in pressure.
POTTER PS15系列監控壓力致動開關主要用于檢測自動消防灑水系統中正常系統壓力的增加和/或減少。典型應用包括：干管和預作用系統中的空氣/氮?dú)獗O(jiān)控，壓力罐，空氣供應和水供應。PS15有兩個開關。低壓開關出廠設置為在壓力降低時以大約10 psi（0.35 BAR）的速度激活。高壓力開關出廠設置為在壓力升高時以大約20 psi（1.4 BAR）的速度激活。
POTTER 防爆壓力開關其他型號：
POTTER PS100-1
POTTER PS15-2
POTTER PS25-1
POTTER PS40-2
POTTER Explosion-proof pressure switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于POTTER 防爆壓力開關PS15-2的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for POTTER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

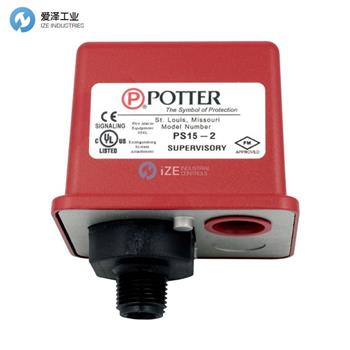

POTTER防爆壓力開關PS15-2介紹
