POTTER 防爆壓力開關PS100-2規格
Dimensions: | 3.78" (9.6cm)W x 3.20" (8.1cm)D x 4.22" (10.7cm)H |
Conduit Entrance: | Two knockouts provided for 1/2" conduit. |
Enclosure: | Cover- Die-cast with textured red powdercoat finish, single cover screw and rain lip. |
Pressure Connection: | Nylon 1/2" NPT male |
Factory Adjustment: | Operates on decrease at 90 PSI (6,2 BAR) |
Pressure Range: | 25-175 PSI (1,7 - 12,1 BAR) |
Differential: | Typical 2 lbs. at 25 PSI (,14 at 1,7 BAR) |
Maximum System Pressure: | 300 PSI (20,68 BAR) |
Switch Contacts: | Two SPDT (Form C) |
Environmental Specifications: | NEMA 4/IP66 Rated Enclosure - indoor or outdoor when used with NEMA-4 conduit fittings. |
Tamper: | Cover incorporates tamper resistant fastener that requires a special key for removal. One key is supplied with each device. |
POTTER 防爆壓力開關PS100-2產品介紹及技術參數

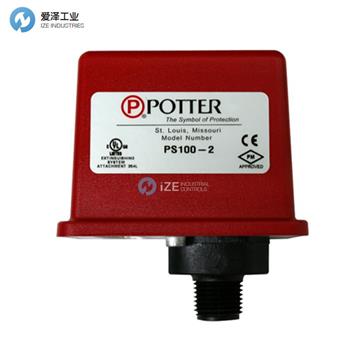

The Potter PS100 Pressure Actuated Switches are designed primarily to detect a decrease from normal system pressure in automatic fire sprinkler systems. A typical application is for an alarm initiating device that is used on a wet system with excess pressure. The PS100-2 has two SPDT switches factory set to operate on a pressure drop at 90 PSI (6,2 BAR).
POTTER PS100壓力致動開關主要用于檢測自動消防灑水系統中正常系統壓力的降低。典型的應用是警報啟動設備，該設備用于壓力過高的濕系統中。PS100-2的兩個SPDT開關出廠設置為在90 PSI（6,2 BAR）的壓降下運行。
POTTER 防爆壓力開關其他型號：
POTTER PS100-2
POTTER PS120-1
POTTER PS15-2
POTTER PS25-2
POTTER PS40-2
POTTER Explosion-proof pressure switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于POTTER 防爆壓力開關PS100-2的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for POTTER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
