NADI電磁閥C90系列規格描述
cable entry threaded: | 1/2” Gk UNI-6125 (standard) |
protection class: | IP-67 |
Ex protection class: | Ex-d II 1G/2GDc (IIB o IIC) |
Temperature class: | T6 or T5 (t.amb -20 ÷ +40 °C) |
Coil insulation class: | F (155°C) - H (180°C) upon request. |
Winding wire class: | H (180°C). |
Duty: | Continuous (S.I.) 100% ED |
Power consumption(2): | Alternate current* 11W. |
Tolleranza tensione: | ± 10% (standard) others available upon request |
Voltage tolerance: | ± 10% |
Insulation: | >1000 MOhm |
Dielectrical Strength: | >2000 V/1’ |
Standard voltages | 12, 24, 48, 110, 115, 125, 220, 240 Volt |
DC=(3) o AC~(50/60Hz): | other voltages available upon request. |
NADI電磁閥C90系列產品介紹及選型

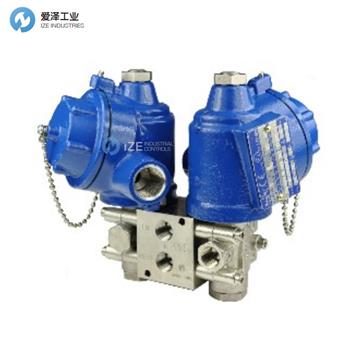

Three way direct acting solenoid valve with spring return, redundant configuration circuit.
Suitable for gaseous media compatible with the (body/seals) material used,vacuum.
Not suitable for liquid media.
Forged brass, nickel-plated brass or stainless steel body.
Stainless steel internal parts.
Stainless steel springs.
360° degrees orientable solenoid.
Mountable in any position.
Light alloy explosion-proof “Ex-d” (EN60079-1) solenoid housing.Electrical and mechanical parts certified according to 2014/34/UE (“ATEX”) directive,suitable to control the flow of inert and/or flammable gases or liquids. Internal andexternal anti-twist ground connecting screws. Inside terminal board suitable forcable upto 2,5 mm2.
三通直動式電磁閥，帶彈簧復位，冗余配置電路。
適用于與所用（身體/密封件）材料兼容的氣體介質，真空。
不適合液體介質。
鍛造黃銅，鍍鎳黃銅或不銹鋼主體。
不銹鋼內部零件。
不銹鋼彈簧。
360°可定向的螺線管。
可安裝在任何位置。
輕合金防爆“ Ex-d”（EN60079-1）電磁閥殼體。電氣和機械零件均已通過2014/34 / UE（“ ATEX”）指令認證，適用于控制惰性氣體和/或可燃?xì)怏w的流量或 液體。內部和外部抗扭曲接地連接螺釘。內部端子板適用于最大2.5 mm2的電纜。
NADI電磁閥C90系列其他常用型號：
NADI C90I60D0C
NADI C90T60C0B
NADI C90I60C1C
NADI C90T60C1C
NADI C90I60D1B
NADI C90T60D1B
NADI C90I60C7C
NADI C90T60C7C
NADI C90I60D7B
NADI C90T60D7B
NADI valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NADI電磁閥C90I60D0C的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NADI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

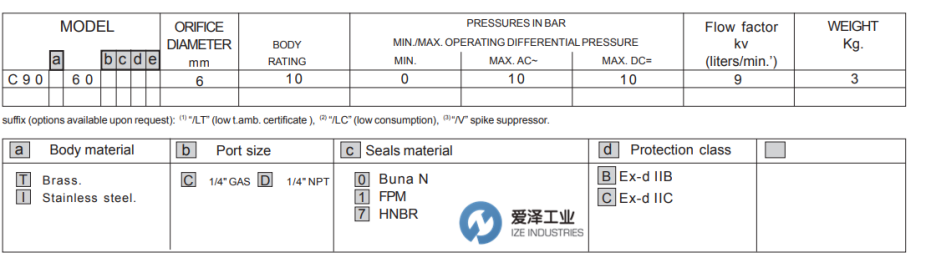

NADI電磁閥C90I60D0C技術數據
