UE壓力開關J6系列產品參數
Specification | |
Storage temperature | -65° to 160°F (-54 to 71°C) |
Ambient TEMPERATURE limits | -40° to 160°F (-40 to 71°C); set point typically shifts less than 1% of range for a 50°F limits (28°C) ambient temperature change |
Set point repeatability | Models S126B-S164B, 126-364, 680: ± 1% of adjustable range; models 610-614: ± 1.5% of adjustable range |
Shock | Set point repeats after 15 G, 10 millisecond duration |
Vibration | Set point repeats after 2.5 G, 5-500 Hz |
Enclosure | Die cast aluminum, epoxy powder coated, gasketed; captive cover screws |
Enclosure classification | Designed to meet Enclosure Type 4X requirements |
Switch output | One SPDT; switch may be wired “normally open” or “normally closed" |
Electrical rating | 15 A 125/250/480 VAC resistive. Electrical switches have limited DC capabilities.Consult factory for additional information. |
Weight | Approx. 1 lb., 8 oz. (0.68 kg.) |
Electrical connection | 1/2” NPT (female) |
Pressure connection | All models 1/4” NPT (female) except models S126B-S164B: 1/2” NPT (female) |
UE壓力開關J6系列產品介紹
J6是可靠，靈敏的壓力開關，最初設計用于過程工廠中的儀表空氣應用。其緊湊的設計以及設定點靈敏度和狹窄或可選的可調死區的組合，為各種應用提供了節省成本的解決方案。
J6非常適用于各種工業過程，例如警報/關閉和低/高使用壓力。 OEM還利用機械設備中的J6進行閾值保護。
The J6 is a reliable, sensitive pressure switch, originally designed for instrument air applications in process plants. Its compact design and combination of set-point sensitivity and narrow or optional adjustable deadband, offers cost-saving solutions for a variety of applications.
The J6 is ideally suited for a wide range of industrial processes such as alarm/shutdown and low/high service pressures. OEMs also utilize the J6 in machinery and equipment for threshold protection.
UE壓力開關J6系列其他常見型號：
UE J6-126
UE J6-134
UE J6-136
UE J6-148
UE J6-152
UE J6-156
UE J6-160

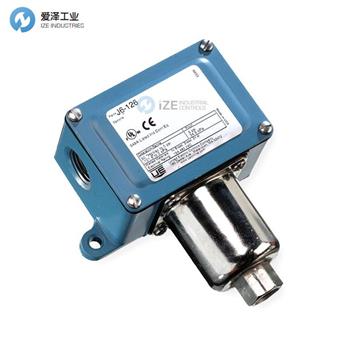

UE J6-142-M201-M550-M446
UE Pressure and Vacuum switches NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于UE壓力開關J6-142-M201-M550-M446的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for UE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
UE壓力開關J6系列J6-142-M201-M550-M446產品介紹
