IMI STI定位器SA/CL-1產品參數
Specification | |
Housing materials | Aluminum |
Operating pressure | P min = 2.5 bar |
Static air consumption | ND 1/4” 1.02 Nm3/h (0.6 SCFM) at 400 kPa(60 psi) |
Static air consumption (I/P converter) | +0.09 Nm3/h (0.06 SCFM) |
Feeding connection | ND 1/4” Model SA/CL-2 |
Output connection | ND 1/4” Model SA/CL-2 |
Pilot signal connection | 1/4” NPTF |
Electrical connection (I/P converter) | ND 1/2” NPTF |
Exclosure degree of protection | IP65 |
CV max | ND 1/4” Inlet = 0.34 |
Operating temperature | -20°C / +70°C |
Signal | 3-15 psi |
Sensitivity | 0.2% of signal range |
Linearity | 1% of the full stroke |
Hysteresis | 0.5% of the full stroke |
Weight | SA/CL-2 ND 1/4” = 2.3 kg |
IMI STI定位器SA/CL-1產品介紹
SA / CL是一款模擬定位器，有氣動和電動氣動版本。定位器采用重型設計，適合在非常惡劣的條件下使用。它用作自動化系統在油氣，煉油，化工，電力，金屬生產和其他領域中氣動閥組的控制部分。UP-2氣動版本接受3-15 psi（0.2-1 bar）的信號，而電動氣動版本接受4-20 mA的信號。
當使用電動-氣動版本時，在氣動定位器上安裝了一個I / P轉換器，該轉換器允許電信號引導定位器。它基于平衡力原理；空氣分配到執行器腔室是通過內部閥芯執行的。
SA / CL設計用于行程長度最大為70mm的線性執行器。該定位器是雙作用的，但如果需要也可以用作單作用。
The SA/CL is an analog positioner available in a pneumatic and electro-pneumatic version. The positioner has a heavy duty design making it suitable for use in very harsh conditions. It is used as the control part of the pneumatic valve set in oil and gas, refining,chemical, power, metal production and other fields with automated systems. The UP-2 pneumatic version accepts a 3-15 psi (0.2-1 bar) signal and the electro-pneumatic version a 4-20 mA signal.
When using the electro-pneumatic version an I/P converter is installed on the pneumatic positioner which allows an electric signal to pilot the positioner. It is based on the balanced-forces principle; air distribution to actuator chambers is executed by an internal spool.
The SA/CL is designed to be used for applications on linear actuators with a stroke length of up to 70mm. This positioner is double acting but can also be used as single acting if required.

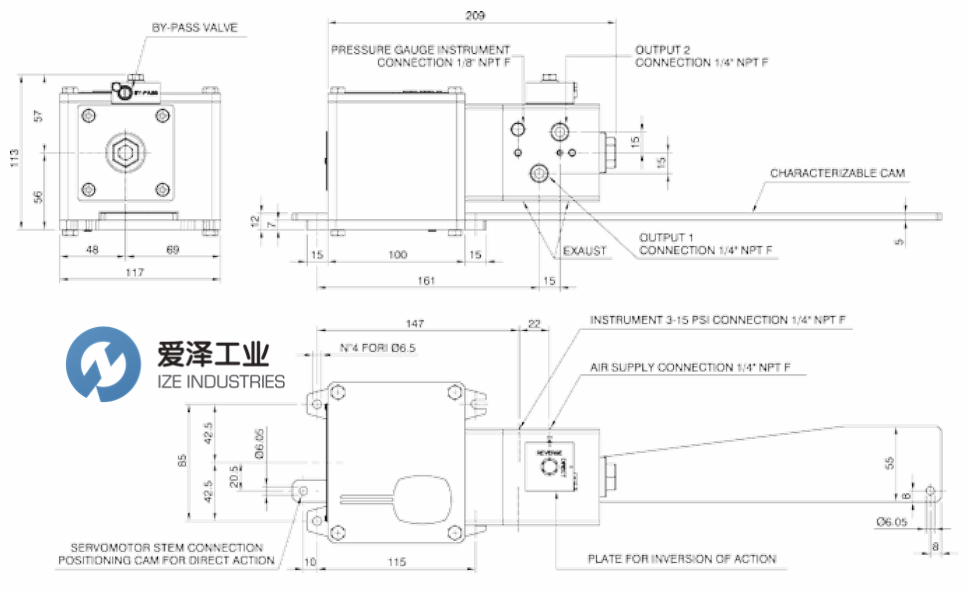

尺寸圖
