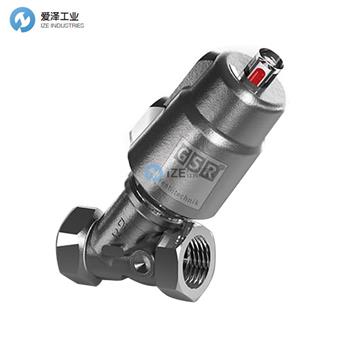

GSR電磁閥63系列產品參數
Specification | |
Control type | Direct pressure controlled |
construction | Valve with poppet seal |
connection | Internal thread acc. DIN ISO 228/1 (BSP) |
Mounting position | Any, preferably with a stationary drive |
Pressure area | 0 - 40 bar (see table on page 2) |
Flow medium | Clean, neutral, gaseous and liquid media |
Max. viscosity | 600 mm2 / s |
Temperature range | Medium: -40 ° C to +200 ° C |
Valve body | Gunmetal RG5 / brass 2.0402 stainless steel 1.4408 |
Metal. Interior parts | Gunmetal / brass and stainless steel |
poetry | NBR, FKM, EPDM, PTFE |
Control pressure | 4 - 10 bar |
Control medium | Clean, neutral gases |
Pilot valve | 2 / 131-31-1702-C182 |
GSR電磁閥63系列產品介紹
2/2向外部控制閥
NC-閥在靜止位置關閉（標準）
否-閥門在靜止位置打開（可選）
DW-帶雙作用執行器的閥（可選）
直接壓力控制閥。閥座直接克服彈簧力通過控制介質打開。
Optimized teaching-in of all limit switch positions
Self-teaching limit switch corrections
Speed-dependent limit switch corrections
Travel and rotation direction control
Positions taught in once are retained permanently
Several installation options
12 mm hollow shaft, one end closed
Ready for operation even without external voltage

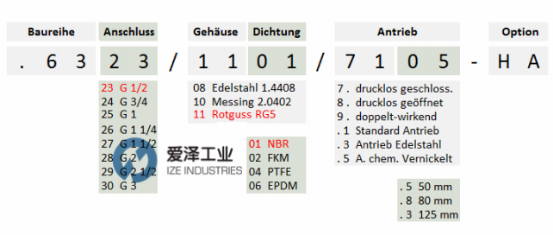

選型參考
GSR電磁閥G63系列其他常見型號：
GSR A632311017105XX
GSR A7231.1002.182.XX
GSR A8121/1701/.122-HA
GSR A4825/1001/.322-QX
GSR A52421002.012XX
GSR A5244/1002/.148-0P
GSR A6325/2004/9305
GSR A46230901.322XX
GSR POSITION DETECTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GSR電磁閥A6323/0804/7505的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GSR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
GSR電磁閥A6323/0804/7505產品介紹
