ROTEX電磁閥51450V02系列技術參數
Valve Type | 5/2, 3/2 Convertible Inline Poppet, Spring Return, NAMUR single Solenoid Valve |
Body Material | Aluminium/ Stainless Steel 316 |
Port Connection | 1/4", 1/2" |
Orifice | 6mm/ 12mm |
Seals | NBR/ Viton GLT |
Manual Override | Stayput/ Momentary/ Without Manual Override |
Flow factor | 6mm-12/ 0.72/ 0.84 |
Orifice-kv/ Kv/ Cv | 12mm-60/ 3.6/ 4.2 |
Media | Air, Diesel, Hydraulic Oil, Inert Gas, Kerosene, LPG, Lubricationg Oil, Petrol (Motor Spirit), Turbine Oil, Water |
Ambient, Fluid Temperature | - 25 °C to 75 °C, Optionally -40 °C to 140 °C |
Response ON/ OFF | ≤ 50ms/ ≤ 90ms |
Pressure | 2-8 bar, 2-10 bar, 2-11 bar |
Voltage-Current | DC |
AC (50Hz/ 60Hz) | |
AC/ DC (50Hz/ 60Hz/ DC) | |
Power | 8W/ 6W/ 2W/ 0.4W |
Protection | Weather Proof IP67 |
Cable Entry | Pg 9 / M20X1.5/ 1/2" NPT / M25X1.5 |

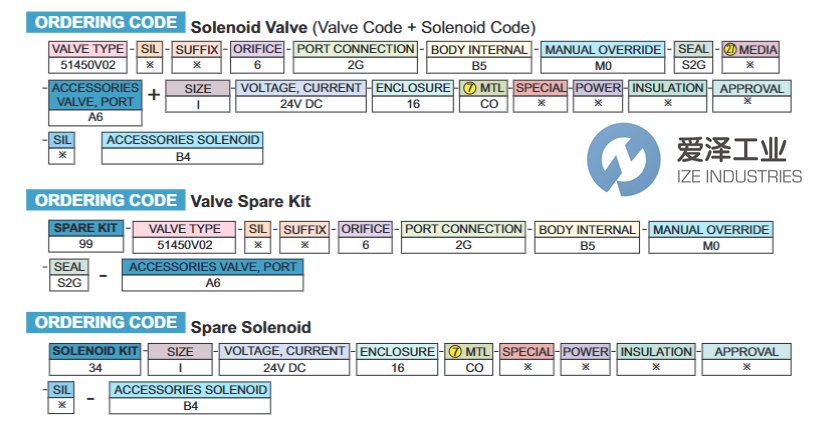

ROTEX電磁閥51450V02系列選型
ROTEX電磁閥5系列其他常用型號：
ROTEX 51450V02-6-2G+III-24V-DC-37-H-01
ROTEX 51400-6-2G-M6
ROTEX 51450-NCW-6-2R
ROTEX 51450NCW-6-2R-M6
ROTEX 51424-6-2G-M6
ROTEX 51450V01-6-2R-M6
ROTEX 51450V02-6-2R-M6
ROTEX 51450V02-6-2R-B5+24V-DC-37-H-01
ROTEX Solenoid valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROTEX電磁閥51450V02-6-2G+III-24V-DC-37-H-01的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROTEX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ROTEX電磁閥51450V02系列51450V02-6-2G+III-24V-DC-37-H-01技術參數及選型
