WATTS執行器22CX230NC2產品參數
Specification | |
Power consumption: | 1,8W |
Protection class: | IP54 |
Actuator stroke: | 3.5 mm |
Valve stroke: | 2,5 mm |
Version 230V: | 90 sec. (start)- 3 min. (end) |
Valve connection: | M30 x 1.5 |
WATTS執行器22CX230NC2產品介紹
電熱執行器，緊湊的設計，具有開/關功能，可與TRV，102M，120B系列恒溫調節散熱器閥，風機盤管閥系列和Watt歧管HKV 系列調節閥兼容。
提供NO（常開）和NC（常閉）兩種版本。2線或4線電纜（帶輔助微型開關），長度1m。
蓋子由阻燃塑料制成。電纜1m。閥門適應性：M30 x 1.5鍍鉻黃銅螺紋環形螺母。

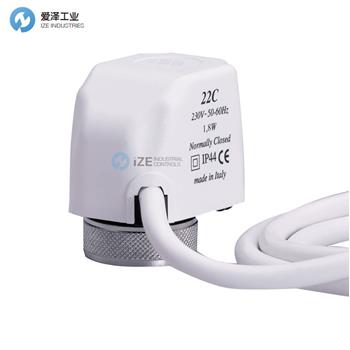

Electrothermic actuator, compact design with on/off action, compatible with thermostat adaptable radiator valves series TRV, 102M, 120B, valve for fan-coils series and regulation valves of Watts manifolds series HKV.
Available both in NO (normally open) and NC (normally closed) versions. 2-wire or 4-wire electrical cable (with auxiliary micro switch), 1m length.
Cap made of flame retardant plastic. Cable 1m. Valve adaption: M30 x 1.5 chrome-plated brass threaded ring nut
WATTS執行器22CX系列其他型號：
WATTS 22CX230NC2
WATTS 22CX24NC2
WATTS 22CX230NC4
WATTS 230VACNC
WATTS 22CX24NC4
WATTS 22CX230NA2
WATTS 22CX24NA2
WATTS 22CX230NA4
WATTS 22CX24NA4
WATTS ACTUATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
