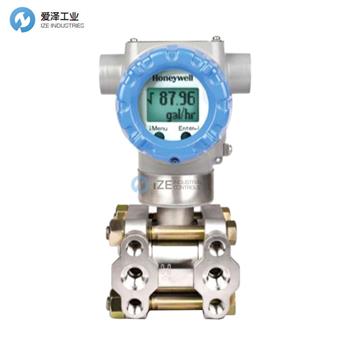

HONEYWELL差壓變送器STD735-E1AC4AS-1-0-AHS-11S-A-10A0-00-0000技術參數
STD735- |
E：316 Stainless Steel |
1：Silicone Oil 200 |
A：None (1/4" NPTF female thread Std) |
C:Carbon Steel |
4:Dual Ended, Standard Vent,End,Matches Head Material1 |
A:Teflon? or PTFE (Glass Filled) |
S:Standard Static Pressure - 4500 psig (315 bar) |
1:Standard,High Side Left, Low Side Right2 / Std Head Orientation |
0:No Approvals Required |
A:Polyester Powder Coated Aluminum,1/2 NPT,None |
H:4-20mA dc,HART Protocol |
S:Standard (w/Internal Zero,Span & Config Buttons),None,English |
1:Standard Diagnostics |
1:Disabled,High> 21.0mAdc,Honeywell Std (3.8 - 20.8 mAdc) |
S:Factory Standard |
A:Standard，F(xiàn)actory Std，Single Calibration |
1:Bracket Type:Angle Bracket ; Material:Carbon Steel |
0：No customer tag |
A0：No Conduit Plugs or Adapters Required |
00:None - No additional options |
0000:Factory Identification |
HONEYWELL變送器STD700系列產品介紹
Introduction
Part of the SmartLine? family of products, the STD700 models are suitable for monitoring, control and data acquisition. These products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion? PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications
Best in Class Features:
Accuracies up to 0.065% of span
Stability up to 0.020% of URL per year for 10 years
Automatic static pressure & temperature compensation
Rangeability up to 100:1
Response times as fast as 100ms
Easy to use and intuitive display capabilities
Intuitive External Zero, Span and configuration capability
On-board diagnostic capabilities
Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
World class overpressure protection
Full compliance to SIL 2/3 requirements.
介紹
STD700型號是SmartLine系列產品的一部分，適用于監視，控制和數據采集。這些產品采用壓阻傳感器技術，結合了壓力傳感和片上溫度補償功能，可在各種應用壓力和溫度范圍內提供高精度，穩定性和高性能。 SmartLine系列還經過了全面測試，并與Experion PKS兼容，可提供高水平的兼容性保證和集成能力。SmartLine輕松滿足壓力測量應用程序最苛刻的應用程序需求。
功能：
精度高達量程的0.065％
十年內每年的穩定性高達URL的0.020％
自動靜壓和溫度補償
量程高達100：1
響應時間高達100ms
易于使用且直觀的顯示功能直觀的外部零位，跨度和配置功能
板載診斷功能
集成雙密封設計，基于ANSI / NFPA 70-202和ANSI / ISA 12.27.0的最高安全性
優質的過壓保護
完全符合SIL 2/3要求。
HONEYWELL變送器其他常用型號：
HONEYWELL STG73S-E1G000-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STG735-A1GC1A-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STD725-A1HC1AS-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STD735-A1HC1AS-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STA725-A1GC1A-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STA72S-E1G000-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STA77S-E1G000-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STA745-A1GC1A-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STA74S-E1G000-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STD775-A1HC1AS-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STG79S-E1G000-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STG77S-E1G000-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STG745-A1GC1A-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STG74S-E1G000-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STG78S-E1G000-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STG78S-E1G000-1-0-AH0-11S-A-10A0-00-0000
HONEYWELL STD820-E1HC6AS-1-A-ADE-11S-A-11A0-F1-0000
HONEYWELL STD720-E1HC4AS-1-0-ADC-11S-A-00A0-00-0000
HONEYWELL STD735-E1AC4AS-1-A-AHS-11S-A-50A0-00-000
HONEYWELL STD735-E1AC4AS-1-0-AHS-11S-A-10A0-00-0000
HONEYWELL Differential Pressure Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
