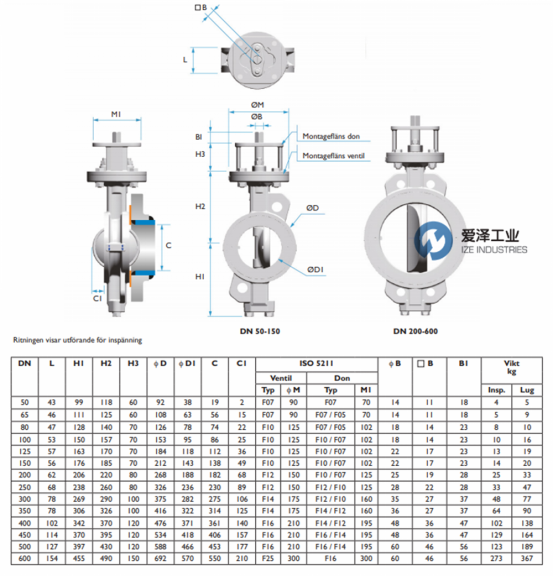

AXEL-LARSSON閥AL45-91 VF910產品參數
Technical data |
Tight in both directions. |
Unique seat holder with attachment of seat ring. |
V-shaped Chevron seal in RTFE or packing box in graphite. |
Through spindle. |
Mechanical stop in closed position. |
AXEL-LARSSON關閉閥AL45-91 VF910產品介紹
AL 45-91 / AL 45-93是一種高質量的雙偏心旋轉阻尼閥，用于夾緊法蘭或凸耳連接。帶RTFE密封圈或金屬的不銹鋼閥體。使用帶有10個固定控制位置或齒輪的可鎖定手柄進行操作。該閥具有根據ISO 5211的安裝板，用于直接安裝執行器。
應用領域
截止閥，適用于對熱水和冷水，化學藥品，石油產品，石油，天然氣和其他液體的簡單而苛刻的應用。該閥還可用于流量控制。

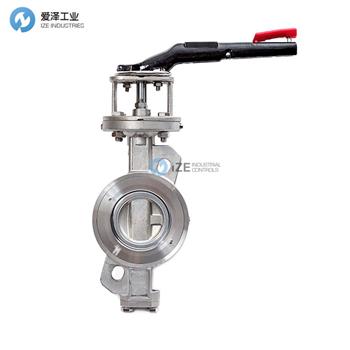

AL 45-91 / AL 45-93 is a high-quality double-eccentric rotary damper valve for clamping between flanges or lug connection. Stainless steel valve body with sealing ring in RTFE or metal. Operation with lockable hand lever with 10 fixed control positions or gear. The valve has a mounting plate according to ISO 5211 for direct mounting of actuators.
Area of application
Shut-off valve for simple to demanding applications for hot and cold water, chemicals, petroleum products, oils, gases and other liquids. The valve also works for flow control.
