POTTER防爆壓力開關 PS10-EX規格
Technical Specifications | |
Dimensions | 152mm Dia. x 178mm H (6” Dia. x 7” H) |
Enclosure | Cast aluminum |
Pressure Connection | 1/2” NPT male brass fitting |
Factory Setting | Both switches operate on pressure increase at: 41 ±7 kPA/.41 ±.07 BAR (6 ±1 PSI) Both switches operate on pressure decrease at: 34 ±7 kPA/.34 ±.07 BAR (5 ±1 PSI) |
Pressure Range | 27-137 kPA/.27-1.3 BAR/ 4-20 PSI |
Maximum Differential | 7 kPA/.07 BAR (1 PSI) |
Maximum System Pressure | 2068 kPA/20.68 BAR/300 PSI |
Switch Contact Ratings | Two Sets of SPDT (Form C) |
Conduit Entrance | 1/2” NPT female conduit opening |
Environmental Specifications | For use in hazardous locations classified by CENELEC: |
Enclosure Rating | IP66/NEMA 4,9 |
Temperature Rating | -40°C to 60°C (-40°F to 140°F) |
Cover Tamper | Cover incorporates tamper resistant fastener that requires a special key for removal. One key is supplied with each device. |
Service Use | NFPA 13, 13D, 13R, 72 |
POTTER防爆壓力開關PS10-EX產品介紹及技術參數

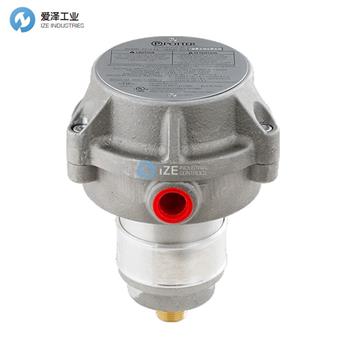

PS10-EX
Explosion Proof Pressure Type Waterflow Switch
The Potter PS10-EX Pressure Actuated Switch is designed for the detection of a waterflow condition in automatic fire sprinkler systems located in hazardous locations classified as shown above. Typical applications are: Wet pipe systems with alarm check valves, dry pipe, preaction, or deluge valves. The PS10-EX is also suitable to provide a low pressure supervisory signal; adjustable between 4 and 20 psi (0,27 and 1,3 BAR).
PS10-EX
防爆壓力式水流開關
波特PS10-EX壓力致動開關設計用于檢測位于如上所述危險區域的自動消防灑水系統中的水流狀況。典型應用包括：帶有報警止回閥的濕管系統，干管，預作用閥或雨淋閥。PS10-EX還適用于提供低壓監控信號。可在4到20 psi（0.2到1.3 BAR）之間調節。
Features
? Designed and approved for use in hazardous locations internationally
? Weatherproof
? Two independently adjustable switches, no tools needed
? Brass pressure connection
? Solid metal enclosure
特征
?設計并批準用于國際危險場所
?防風雨
?兩個獨立可調的開關，無需工具
?黃銅壓力連接
?堅固的金屬外殼
