AVS-ROMER電磁閥EGV-200系列技術參數
Constructional design | Seat valve, rubber seals | |||
Product name | 2/2-way solenoid valve | 3/2-way solenoid valve | ||
Actuation | electric, direct-acting, resting manual override optional | |||
Product type | EAV-2..-A.. | EAV-2..-B.. | EAV-2..-C.. | EAV-2..-D.. |
Function | “A” normally closed | “B” normally open | “C” normaly closed with “1”, “2” to “3” discharged | “D” in 0 position “1” to “2” open,“3” closed (closing against current) |
Nominal diameter | DN 1.2 to DN 2.2 | DN 1.2 to DN 1.8 | ||
Connection | M 5 or pipe thread (ISO 228) G 1/8 to G 1/4 | |||
Ambient temperature | -20 °C to +60 °C (others on request) | |||
Medium temperature | with NBR: -10 °C to +90 °C for FKM: -10 °C to +130 °C (for exceptions see table) | |||
Medium viscosity | up to approx. 20 mm2/s | |||
Valve body material | Brass | |||
Manual override | PPE (Polyphenylene ether) | |||
Seat nozzle material | Stainless steel | |||
Other inner component material | Stainless steel and non-ferrous metal. DC non-ferrous metal-free version | |||
Seal material | NBR (Nitrile rubber) or FKM (Fluoride rubber) (others on request) | |||
Mounting method | 2 M3 tapped holes in valve body or using rigid pipework | |||
Mounting position | optional, preferably upright | |||
AVS-ROMER電磁閥EGV-200系列介紹
電磁閥系列具有熟悉的結構設計，但具有顯著改進的磁路。
導流管下部焊接有磁頭，減小了電路的磁阻。
除其他外，這一改進使電磁閥的使用大大降低了功耗，從而降低了系統的自熱。
該系列的另一個特點是特別堅固和耐腐蝕的結構。具有四個分級性能等級的電磁線圈可以方便地根據標稱寬度、直徑、工作壓力、功耗、電流類型或允許的自我調節滿足各種要求 -加熱。
Solenoid valve series with familiar constructional design, however with significantly improved magnetic circuit.
On the lower part of the guid tube a magnetic nipple is welded on, which reduces the magnetic resistance of the circuit.
This improvement enables among other things the use of solenoid valves with significantly reduced power consumption and thus lowers the selfheating of the system.
A further feature of this series is the especially strong and corrosion-resistant construction.Solenoid coils with four graduated performance classes enable convenient adjustment to various requirements, with respect to nominal width,diameters, operating pressure, power consumption,Type of current or permitted self-heating.
AVS-ROMER電磁閥EGV-200系列其他常用型號：
AVS-ROMER EAV-211-A12-M05BK-00
AVS-ROMER EAV-211-A12-M05FK-00
AVS-ROMER EAV-211-A12-1/8BK-00
AVS-ROMER EAV-211-A12-1/8FK-00
AVS-ROMER EAV-211-A15-M05BK-00
AVS-ROMER EAV-211-A15-M05FK-00
AVS-ROMER EAV-211- A15-1/8BK-00
AVS-ROMER EAV-211- A15-1/8FK-00
AVS-ROMER EAV-211-A18-M05BK-00
AVS-ROMER EAV-211- A18-M05FK-00
AVS-ROMER EAV-211-A18-1/8BK-00
AVS-ROMER EAV-211-A18-1/8FK-00
AVS-ROMER EAV-211-A20-M05BK-00
AVS-ROMER EAV-211-A20-M05FK-00
AVS-ROMER EAV-211-A20-1/8BK-00
AVS-ROMER EAV-211-A20-1/8FK-00
AVS-ROMER EGV-2003-B97-3/8CL-00
AVS-ROMER valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
有關AVS-ROMER電磁閥EGV-2003-B97-3/8CL-00更詳細的信息或者購買AVS-ROMER相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.

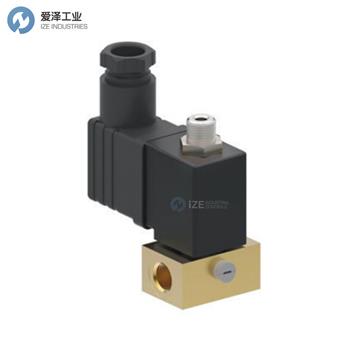

AVS-ROMER電磁閥EGV-200系列EGV-2003-B97-3/8CL-00產品介紹
