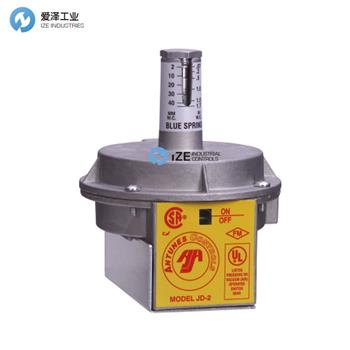

ANTUNES安全開關JD-2規格描述
Specifications | |
Ranges | |
BLUE | 0.07” to 1.7” W.C. (2 mm to 43 mm W.C.) |
GREY | 0.1” to 4” W.C. (3 mm to 102 mm W.C.) |
PURPLE | 0.1” to 10” W.C. (3 mm to 250 mm W.C.) |
RED | 0.1” to 24” W.C. (3 mm to 600 mm W.C.) |
ORANGE | 5” to 35” W.C. (125 mm to 875 mm W.C.) |
Maximum Operating Pressure: | 35” Water Column |
Maximum Pressure Surge: | 3 PSIG |
Maximum Ambient Operating Temperature: | +140° F (+60° C) |
Minimum Ambient Operating Temperature: | -20°F (-93° C) |
ANTUNES安全開關JD-2描述及尺寸圖
This equipment must be installed only by a licensed electrician who is experienced with combustion safeguard control systems and understands the functions of an interlocking switch such as gas pressure switches. Prior to being put into operation in conjunction with the combustion safeguard systems, all switches should be tested for proper range setting and proper wiring. Check piping connections and switch housing for leaks with a soap bubble test. All exhaust fans and blowers should be inspected and checked for proper rotation prior to starting up.
本設備只能由具有燃燒防護控制系統經驗并了解互鎖開關（例如氣壓開關）功能的執照電工安裝。 在與燃燒防護系統配合使用之前，應對所有開關進行適當?shù)姆秶O(shè)置和正確的接線測試。 用肥皂泡測試檢查管道連接和開關外殼是否泄漏。 在啟動之前，應檢查并檢查所有排氣扇和鼓風機是否旋轉正常。、
ANTUNES安全開關其他常用型號：
ANTUNES JD-2 BLUE
ANTUNES JD-2 GREY
ANTUNES JD-2 PURPLE
ANTUNES JD-2 RED
ANTUNES JD-2 ORANGE
ANTUNES Safety switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ANTUNES安全開關JD-2 GREY的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ANTUNES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ANTUNES安全開關JD-2 GREY規格描述
