TIVAL壓力開關FF4-2 DAH產品參數
Order reference | FF 4-2 DAH |
Upper switch point adjustable (bar) | 0,11 ... 2 |
Lower switch point adjustable (bar) | 0,04 ... 1,89 |
Smallest diff.* (bar) | 0,07 0,11 |
Max. operating pressure (bar) | 20 |
Max. test pressure (bar) | 40 |
Standard setting (bar) | 0,5 / 1,5 |
Part No. | 1010061 |
TIVAL壓力開關FF4系列產品介紹

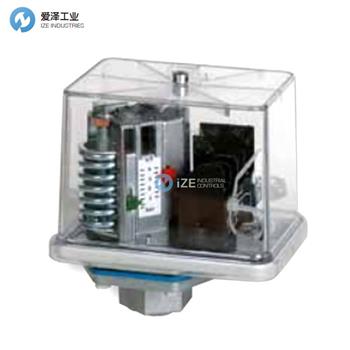

Pressure switch FF 4-... DAH(G)
Perbunan diaphragm
Pressure connector G 3/8“ Female thread, ALSi 12
Pressure range from 0,11...32 bar
Change-over contact
Product description Pressure switch FF 4-... DAH(G)
Mechanical Pressure switch with perbunan diaphragm and pressure connector G 3/8“ Female thread, ALSi 12
Pressure range from 0,11...32 bar
Ample wiring room
Easy to adjust, upper and lower switch points can be adjusted independently of each other
High repeatability
Easily read scale
Pressure connector G 3/8“ Female thread, ALSi 12. VDE 0660, IEC 337-1, IEC 553-1
Monitoring and controlling the pressure of liquid or gaseous media in
pipelines, tanks, vats, pressure vessels, firefighting equipment and apparatus
壓力開關 FF 4-... DAH(G)
橫膈膜
壓力接頭 G 3/8“ 內螺紋，ALSi 12
壓力范圍從 0,11...32 bar
轉換觸點
產品描述 壓力開關 FF 4-... DAH(G)
機械壓力開關，帶 perbunan 膜片和壓力連接器 G 3/8“ 內螺紋，ALSi 12
壓力范圍從 0,11...32 bar
寬敞的接線室
調整方便，上下開關點可相互獨立調整
高重復性
輕松讀取刻度
壓力連接器 G 3/8“ 內螺紋, ALSi 12. VDE 0660, IEC 337-1, IEC 553-1
監測和控制液體或氣體介質的壓力
管道、儲罐、大桶、壓力容器、消防設備和器具
TIVAL壓力開關FF4系列其他常見型號：
TIVAL FF4-2DAH 1010061
TIVAL FF 4-2 DAH 1010061
TIVAL FF 4-2 DAH G 1010109
TIVAL FF 4-4 DAH 1010062
TIVAL FF 4-4 DAH G 1010012
TIVAL FF 4-8 DAH 1010078
TIVAL FF 4-8 DAH G 1010096
TIVAL FF 4-16 DAH 1010081
TIVAL FF 4-16 DAH G 1010102
TIVAL FF 4-32 DAH 1010076
TIVAL FF 4-32 DAH G 1010003
TIVAL pressure switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TIVAL壓力開關FF4-2 DAH的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TIVAL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
