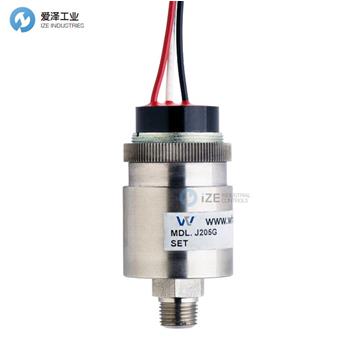

WHITMAN CONTROLS壓力開關J205G系列產品介紹
Switch Application | High Press/Low SP J205 (1-800psig) |
Is OEM Replacement Part? | No |
Switch Availability | Custom / Within 2 Weeks |
Set Point Pressure Range | 4 To 100 |
Circuit Type | SPDT |
Set Point Adjustability | Factory Set - Fixed |
Set Point Options | Factory Set - Fixed |
Maximum Amperage And Voltage | 1 Amp 125 VAC Gold |
Electrical Interface | DN - DIN Male Plug |
Maximum System Pressure | 5000 PSIG |
Fitting | 1/8" NPT Male |
Corrosive Media | No |
Wet/Dry/Submerged | Standard (Dry Use) |
Wetted Materials | Stainless & Buna |
Additional Options | Many Options Are Available. If It's Not Here, Call Us. |
Standard Fitting Size | 1/8"NPT |
Shipping Weight Ounces | 7 Ozs |
WHITMAN CONTROLS壓力開關J205G系列介紹
OVERVIEW
The Whitman Controls J205G High Pressure Low Set Point Pressure Switches are among our most versatile offering, affording the end user an extensive operating environment and a wide range of set point optionality. These switches can be exposed to high pressure without compromising integrity or switch functionality. Uses include gas bottle change switches and oil or water supply control. They are frequently used in pump and reservoir applications. The internals are stainless steel with a diaphragm o-ring that is available in numerous compounds.
概述
惠特曼控制J205G高壓低設定點壓力開關是我們最通用的產品之一，為終端用戶提供廣泛的操作環境和廣泛的設定點選擇。這些開關可以暴露在高壓下而不損害完整性或開關功能。用途包括氣體瓶轉換開關和油或水的供應控制。它們經常用于泵和油藏應用。其內部材料為不銹鋼，帶有可用于多種化合物的隔膜o形環。

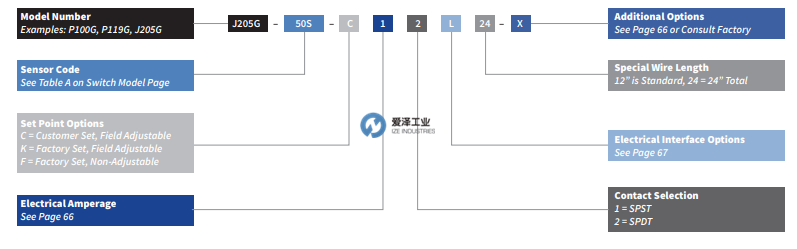

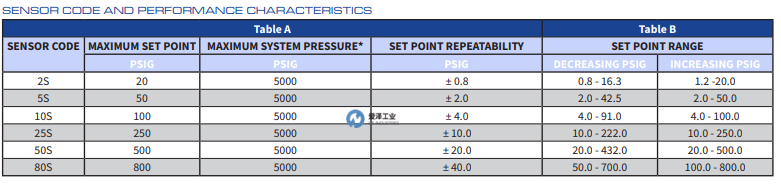

WHITMAN CONTROLS壓力開關J205G系列選型
WHITMAN CONTROLS壓力開關J205G系列其他型號列舉
WHITMAN CONTROLS J205G-10S-F52TB
WHITMAN CONTROLS J205G-25-K11TS
WHITMAN CONTROLS J205G-10S-K12TB
WHITMAN CONTROLS J205G-10S-C12L24
WHITMAN CONTROLS J205G-25S-C52L-DIS
WHITMAN CONTROLS J205G-5S-VCR-C12TB-DIS
WHITMAN CONTROLS J205G-10S-C52L-DIS
WHITMAN CONTROLS Pressure switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WHITMAN CONTROLS壓力開關J205G-10S-F52TB的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for SIRIO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
WHITMAN CONTROLS壓力開關J205G-10S-F52TB產品介紹及特性
