HYDAC泄壓閥DB12120A-01X-350V描述
DB |
12120A =2-way,metric |
01= standard, zinc-plated |
X=Series |
350= 10 to 350 bar |
V= Allen head |
HYDAC泄壓閥DB12120A系列功能介紹

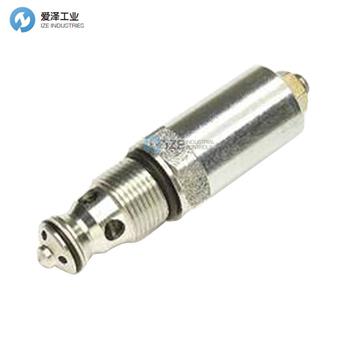

The pressure relief valve DB12120A is a direct-acting, spring-loaded poppet valve. Its function is to relieve pressure in the system. It is normally closed. If the pressure at port 1 exceeds the pre-set spring tension, the poppet is lifted off the seat and oil flows from port 1 to port 2.
This continues until the system pressure is equal to the spring tension and the valve closes again.
Important: Pressures at port 2 are additive to the opening pressure! If the connections are incorrect or if the pressure has been set above the operating pressure, the safety function of the valve is disabled.
泄壓閥DB12120A是一個直動式彈簧加載提升閥。它的功能是減輕系統壓力。它通常是關閉的。如果端口1的壓力超過預設的彈簧張力,則提動提升閥芯離開閥座,機油從端口1流向端口2。
這一直持續到系統壓力等于彈簧張力并且閥門再次關閉為止。
重要提示:端口2上的壓力會增加打開壓力!如果連接不正確或壓力設置為高于工作壓力,則閥門的安全功能將被禁用。
HYDAC泄壓閥DB12120A系列其他常用型號:
HYDAC DB12120A-01X-030V 555785
HYDAC DB12120A-01X-055V 3117096
HYDAC DB12120A-01X-090V 3494786
HYDAC DB12120A-01X-150V 552805
HYDAC DB12120A-01X-250V 552806
HYDAC DB12120A-01X-350V 552807
HYDAC DB12120A-01X-420V 552836
HYDAC pressure relief valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC泄壓閥DB12120A-01X-350V的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
HYDAC泄壓閥DB12120A系列DB12120A-01X-350V規格描述
