IMTEX閥位指示器SLR4005MW3XX產品參數
Specification |
Enclosure manufactured in polycarbonate for improved chemical and mechanical resistive properties. |
Versions available providing compatibility for hazardous area applications including Ex ia intrinsic safety. |
A lockable part-turn quick access cover ensures fast access for speedy start-up. |
High visibility position indicator with different colouring options providing clear local indication of the current valve position. |
Using a stainless steel drive shaft that eliminates the problems associated with plastic shaft assemblies thus allowing precise switch setting. |
IP67 ingress protection. |
Quick setting switch cams that are set without the need for additional tools allow fast and simple switch adjustments. |
Switch termination via. European approved terminal blocks. |
Compact design provides considerable space saving over similar equipment without compromising the ease of installation or maintenance. |
Simplified mounting arrangements allow quick and secure mounting to pneumatic actuators with VDI/VDE.3845 topworks as well as other actuators with non-standard topworks. |
Different electrical functions available including mechanical switches, reed type proximity switches and inductive proximity sensors. |

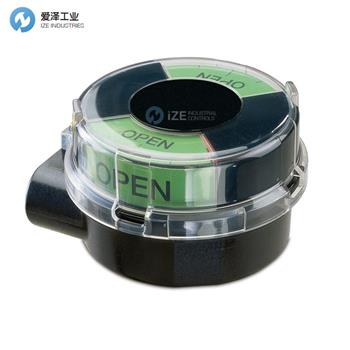

IMTEX閥位指示器SLR4系列產品介紹
SLR型工程樹脂（聚碳酸酯）閥位置監控器通用開關系統，為通用/非危險應用提供具有競爭力的技術上優越的解決方案。
IP67外殼設計帶有獨特的快速訪問可鎖定蓋，可降低成本和空間要求，同時確保在大多數測試環境中的堅固可靠性。
認證：非危險和ATEX / IECEx EX ia IIC T * Gb / Ex ia IIIC T *°C Db
Type SLR engineered resin (polycarbonate) valve position monitor general purpose switch system that provides a competitive and technically superior solution for general purpose / non-hazardous applications.
The IP67 enclosure design comes with a unique quick access lockable cover allowing for reduced costs and space requirements whilst ensuring rugged reliability in the most testing environments.
Certified: Non-hazardous and ATEX / IECEx EX ia IIC T* Gb / Ex ia IIIC T*°C Db

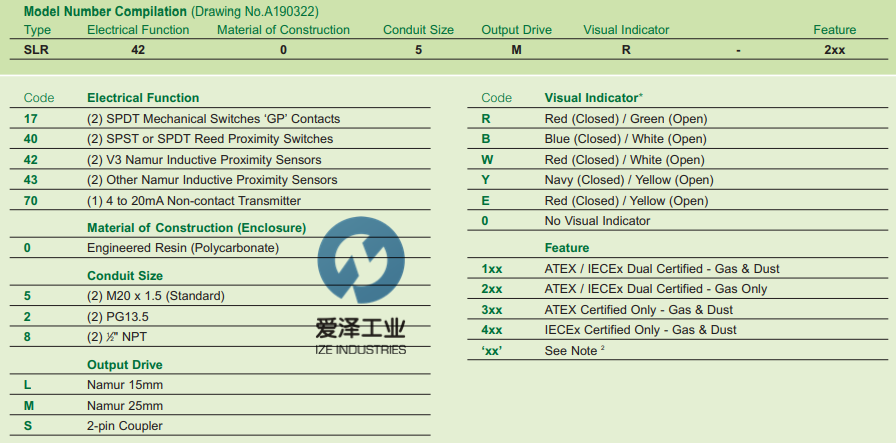

選型參考

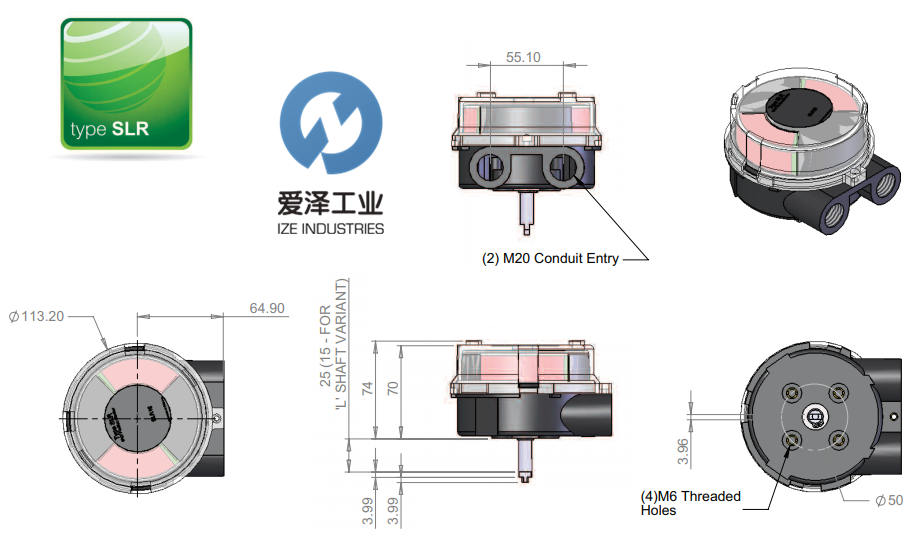

外觀尺寸
IMTEX閥位指示器SLR系列其他常見型號：
IMTEX SLR1705MB2XX
IMTEX SLR4005MW3XX
IMTEX SLR7005LY4XX
IMTEX SLR4305LE1XX
IMTEX SLR4305L02XX
IMTEX SLR4305S03XX
IMTEX Valve Position Monitor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于IMTEX閥位指示器SLR系列的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for IMTEX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
IMTEX閥位指示器SLR系列 SLR4005MW3XX產品參數
