ROBOTEQ直流電機控制器FBL23系列選型介紹
Orderable Product References | |||||
Reference | Number of Channels | Amps/Channel | Volts | Ethernet | STO |
FBL2360(A) | 2 | 60 | 60 | No | No |
FBL2360(A)S | 1 | 120 | 60 | No | No |
FBL2360T | 2 | 60 | 60 | No | YES |
FBL2360TS | 1 | 120 | 60 | No | YES |
FBL2360E | 2 | 60 | 60 | YES | No |
FBL2360ES | 1 | 120 | 60 | YES | No |
FBL2360TE | 2 | 60 | 60 | YES | YES |
FBL2360TES | 1 | 120 | 60 | YES | YES |
ROBOTEQ直流電機控制器FBL23系列介紹及選型
FBL2360電機控制器（v2.4）的最新硬件版本。此硬件版本包括支持雙通道旋轉變壓器反饋，用于正弦換向。還包括以太網連接模塊的標頭。
FBL2360是一款功能豐富的大電流雙通道控制器，適用于無刷直流電機?？刂破骺梢栽趲追N模式中的一種模式下運行，以便檢測電機3繞組上的轉子位置和順序功率，以便產生平穩的連續旋轉?？刂破鬟€使用霍爾傳感器和/或編碼器信息來計算速度并測量32位計數器內的行進距離。電動機可以在開環或閉環速度模式，位置模式或扭矩模式下操作。FBL2360具有多個模擬，脈沖和數字I/O，可以重新映射為命令或反饋輸入，限位開關或許多其他功能。FBL2360接受從RC收音機，模擬操縱桿，無線調制解調器或微型計算機接收的命令。對于移動機器人應用，控制器的兩個電機通道既可以獨立操作，也可以混合使用以移動和轉向車輛。使用CAN總線，單個雙絞線上最多可以以高達1Mbit/s的速度聯網127個控制器。
控制器中集成了許多安全功能，以確?？煽亢桶踩牟僮鳌？刂破鞯牟僮骺梢允褂没菊Z言腳本進行廣泛的自動化和自定義?？梢允褂肦oboteq的免費PC實用程序?qū)崟r配置，監控和調整控制器。通過從Roboteq下載新的操作軟件，控制器還可以在現場重新編程，具有最新功能。
The FBL2360A is the latest hardware revision of the FBL2360 motor controller (v2.4). This hardware revision includes support for dual channel resolver feedback for sinusoidal commutation. Also included is a header for an Ethernet connectivity module.
Roboteq’s FBL2360 is a features-packed, high-current, dual channel controller for brushless DC motors. The controller can operate in one of several modes in order to sense the rotor position and sequence power on the motors’ 3 windings in order to generate smooth continuous rotation. The controller also uses the Hall sensor and/or Encoder information to compute speed and measure travelled distance inside a 32-bit counter. The motors may be operated in open or closed loop speed mode, position mode or in torque mode. The FBL2360 features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions. The FBL2360 accepts commands received from an RC radio, Analog Joystick, wireless modem, or microcomputer. For mobile robot applications, the controller’s two motor channels can either be operated independently or mixed to move and steer a vehicle. Using CAN bus, up to 127 controllers can be networked at up to 1Mbit/s on a single twisted pair.
Numerous safety features are incorporated into the controller to ensure reliable and safe operation. The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be configured, monitored and tuned in realtime using a Roboteq’s free PC utility. The controller can also be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.
ROBOTEQ直流電機控制器FBL23系列其他常用型號
ROBOTEQ FBL2360(A)
ROBOTEQ FBL2360(A)S
ROBOTEQ FBL2360T
ROBOTEQ FBL2360TS
ROBOTEQ FBL2360E
ROBOTEQ FBL2360ES
ROBOTEQ FBL2360TE
ROBOTEQ FBL2360TES
RONOTEQ DC motor controller NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROBOTEQ直流電機控制器FBL2360T的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for RONOTEQ products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

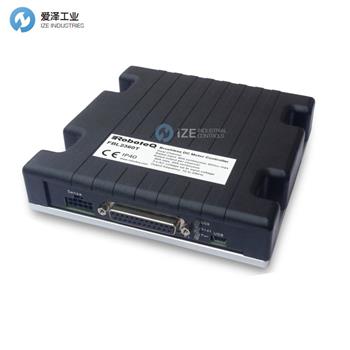

ROBOTEQ直流電機控制器FBL2360T參數介紹
