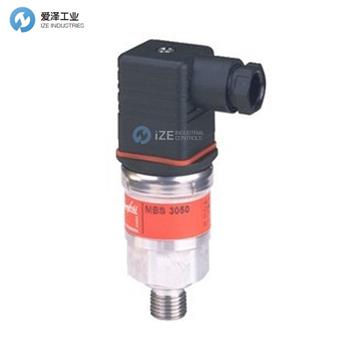

DANFOSS壓力變送器MBS3050 060G1154產品參數
Specification | |
Gross weight | 0.19 kg |
Net weight | 0.16 kg |
EAN | 5702423099740 |
+ supply | Pin 1 |
- common | Pin 2 |
Accuracy, max. +/- FS [%] | 0.01 |
Accuracy, typical +/- FS [%] | 0.005 |
Adj. zero point and span | No |
Ambient temperature range [°C] [Max] | 85 °C |
Ambient temperature range [°C] [Min] | -40 °C |
Ambient temperature range [°F] [Max] | 185 °F |
Ambient temperature range [°F] [Min] | -40 °F |
Approval | ATEX |
Approval comments | ATEX Ex nA IIA T3 Gc |
Compensated temp. range [°C] [Max] | 80 °C |
Compensated temp. range [°C] [Min] | 0 °C |
Compensated temp. range [°F] [Max] | 176 °F |
Compensated temp. range [°F] [Min] | 32 °F |
Electrical conn. Male/Female | Male and Female |
Electrical connection | DIN-plug |
Electrical connection size | Pg 9 |
Electrical connection standard | EN 175301-803-A |
Enclosure rating IP | IP65 |
Flush diaphragm | No |
Intrinsically safe | No |
Medium temperature range [°C] [Max] | 85 °C |
Medium temperature range [°C] [Min] | -40 °C |
Medium temperature range [°F] [Max] | 185 °F |
Medium temperature range [°F] [Min] | -40 °F |
Non-linearity BFSL ±FS [%] | 0.005 |
Output signal | Current |
Output signal [mA] [Max] | 20 mA |
Output signal [mA] [Min] | 4 mA |
Overload pressure max. [bar] | 600 bar |
Packing format | Multi pack |
Pressure connection HEX [mm] | 27 mm |
Pressure connection size | 1/4 |
Pressure connection standard | DIN 3852-G |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure range [bar] [Max] | 400 bar |
Pressure range [bar] [Min] | 0 bar |
Pressure range [psi] [Max] | 5801.51 psi |
Pressure range [psi] [Min] | 0 psi |
Pressure unit reference | Gauge (relative) |
Product group | Sensors |
Product name | Pressure transmitter |
Pulse-snubber | Yes |
Quantity per packing format | 14 pc |
Response time max. [ms] | 4 ms |
Specification key | MBS 3050-3611-A1FB04-4 |
Supply voltage [V] DC [Max] | 34 V |
Supply voltage [V] DC [Min] | 9 V |
Type | MBS 3050 |
DANFOSS壓力變送器MBS3050 060G1154產品介紹
產品名稱：壓力變送器，類型：MBS 3050，壓力范圍[psi]：0.00-5801.51，壓力范圍[bar]：0.00-400.00，壓力連接尺寸：1/4，壓力連接類型：G，輸出信號[mA] ：4-20，電氣連接尺寸：Pg 9，電氣連接：DIN插頭
Product name: Pressure transmitter, Type: MBS 3050, Pressure range [psi]: 0.00 - 5801.51, Pressure range [bar]: 0.00 - 400.00, Pressure connection size: 1/4, Pressure connection type: G, Output signal [mA]: 4 - 20, Electrical connection size: Pg 9, Electrical connection: DIN-plug
DANFOSS壓力變送器MBS 3050系列其他常見型號：
DANFOSS 060G1154
DANFOSS 060G1100
DANFOSS 060G1101
DANFOSS 060G1102
DANFOSS 060G1103
DANFOSS 060G1104
DANFOSS 060G1105
DANFOSS 060G1106
DANFOSS 060G1107
DANFOSS 060G1108
DANFOSS 060G1109
DANFOSS Short-stroke cylinder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS壓力變送器MBS3050 060G1154的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
