GO調壓閥C1-2F11A3I10002規格介紹
Seat Material | Maximum Temperature | Maximum Operating Inlet Pressure |
Tefzel? | 150o F (66o C) | 3600 psig (24.82 MPa) |
High Density PTFE | 150o F (66o C) | 3600 psig (24.82 MPa) |
CF PTFE | 175o F (80o C) | 3600 psig (24.82 MPa) |
PCTFE | 175o F (80o C) | 3600 psig (24.82 MPa) |
Polyimide | 175o F (80o C) | 3600 psig (24.82 MPa) |
PEEK | 175o F (80o C) | 3600 psig (24.82 MPa) |
GO調壓閥C1-2F11A3I10002介紹

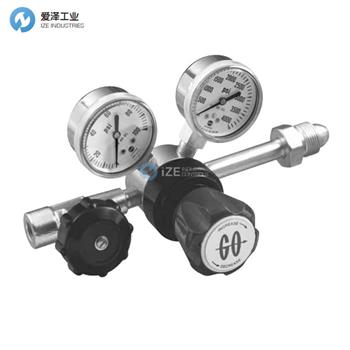

The CYL-1 Series is designed as a complete compact pressure control module. The basis of this unit is the economical PR-2 Series pressure control valve which is widely used in instrumentation sample systems as well as many other applications requiring maximum reliability. This regulator, when ordered with the appropriate gauges and CGA inlet fitting, is designed as a compressed gas cylinder regulator for those applications where the corrosion resistance of stainless steel is not a requirement.
Brass (alloy 360) construction
Stainless steel diaphragm with PTFE lining
Stainless steel poppet
Better than 25 Ra finish in diaphragm cavity
20 micron inlet filter
Bubble tight shutoff
CGA inlet fitting
2″ diameter Brass gauges
Outlet pressure ranges are 10, 25, 50, 100, 250 and 500 psig
Proof pressure is 2 times maximum working pressure
Burst pressure is 4 times maximum working pressure
Weight: 1.9 lbs (0.86 kg)
CYL-1系列設計為完整的緊湊型壓力控制模塊。 該單元的基礎是經濟的PR-2系列壓力控制閥，該閥廣泛用于儀器樣品系統以及許多其他需要最大可靠性的應用中。 當與適當?shù)膲毫Ρ砗虲GA入口配件一起訂購時，該減壓閥設計為壓縮氣瓶減壓閥，用于那些不要求不銹鋼具有耐腐蝕性的應用。
黃銅（合金360）結構
不銹鋼隔膜帶PTFE襯里
不銹鋼提升閥
隔膜腔中的光潔度優于25 Ra
20微米入口過濾器
氣泡緊密關閉
CGA進氣配件
直徑2英寸的黃銅量規
出口壓力范圍為10、25、50、100、250和500 psig
耐壓是最大工作壓力的2倍
爆破壓力是最大工作壓力的4倍
重量：1.9磅（0.86公斤）

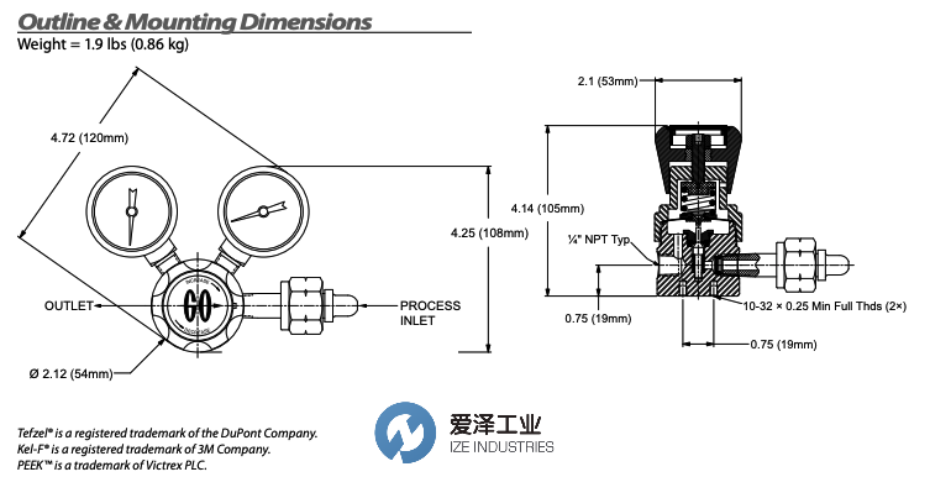

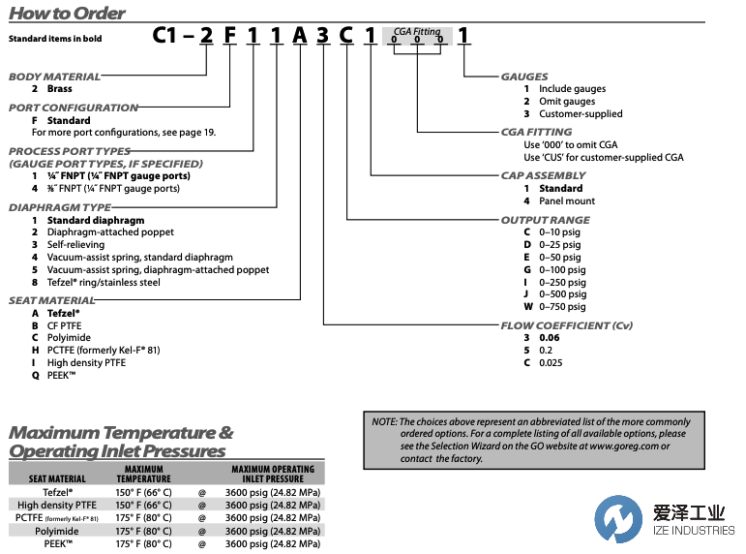

GO調壓閥CYL-1系列選型表及尺寸圖
GO調壓閥CYL-1系列型號
GO CYL-1
GO CC-2
GO CYL-2
GO COM-1
GO CYL-3
GO COM-2B
GO CYL-20
GO COM-2P
GO CYL-21
GO C1-2F11A3I10002
