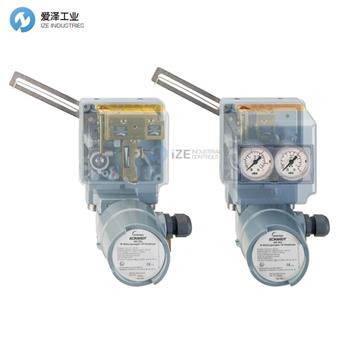

FOXBORO定位器SRI983系列規格描述
TECHNICAL DATA |
Input | Signal range . . . . . . . . . . . . 4 ... 20 mA
Input resistance . . . . . . . . . . < 260 Ω
Stroke range . . . . . . . . . . . . 8 ... 100 mm (0.3 ... 4 in)
Angular range linear. . . . . . . 30 ° ... 120 °
equal percentage . . . . . . . . . 90 °; from 70 ° linear |
Output | Output to actuator . . . . . . . . 0 ... 100 % supply air pressure |
Supply | Supply air pressure . . . . . . . 1.4 ... 6 bar (20 ... 90 psig)
Air supply. . . . . . . . . . . . . . . according to ISO 8573-1
- Solid particle size and density class 2
- Oil rate class 3
- Pressure dew point 10 K under ambient temperature
The use of filter regulator for air supply of positioner is strongly recommended. It reduces the air pressure to actuator’s maximum pressure and keeps it constant. |
Ambient conditions | Ambient temperature . . . . . . –40 °C (–40 °F) to ...
Relative humidity . . . . . . . . . up to 100 %
Operating conditions
as per IEC 654-1 . . . . . . . . . The device can be operated at a class Dx location
Transport and storage temperature . . . . . . . . . . . . . –40 ... 80 °C (–40 ... 176 °F)
Protection class pneumatic part. . . . . . . . . . . IP 54
electrical part
ATEX . . . . . . . . . . . . . . . . IP 65
FM + CSA . . . . . . . . . . . . NEMA 4X |
Electromagnetic compatibility EMC | Operating conditions . . . . . . industrial environment Immunity according to
- NAMUR recommendation NE21 fulfilled
- EN 61 326 . . . . . . . . . . . . . fulfilled
- EN 61 000-6-2 . . . . . . . . . . fulfilled
Emission according to
- EN 55 011,Group 1, Class A . . . . . . . . fulfilled
- EN 61 000-6-2 . . . . . . . . . . fulfilled |
CE marking | Electromagnetic compatibility............. 2004/108/EC
Low-voltage regulation . . . . . not applicable |
Response characteristic1) | Amplification . . . . . . . . . . . . adjustable
Sensitivity . . . . . . . . . . . . . . < 0.1 % F.S.
Non-linearity (terminal based adjustment) . . . . . . . . < 1.0 % F.S.
Hysteresis . . . . . . . . . . . . . . < 0.5 % F.S.
Supply air dependency. . . . . < 0.3 % / 0.1 bar (1.5 psi)
Temperature effect. . . . . . . . < 0.5 % / 10 K |
Air consumption | supply air pressure air consumption
single acting
1.4 bar (20 psig). . . . . . . . . 200 ln/h ( 7.1 scfh)
3.0 bar (45 psig). . . . . . . . . 350 ln/h (12.4 scfh)
6.0 bar (90 psig). . . . . . . . . 600 ln/h (21.2 scfh)
double acting
1.4 bar (20 psig). . . . . . . . . 300 ln/h (10.6 scfh)
3.0 bar (45 psig). . . . . . . . . 500 ln/h (17.7 scfh)
6.0 bar (90 psig). . . . . . . . . 950 ln/h (33.5 scfh) |
Air output | Load effect2). . . . . . . . . . . . . –3 % for delivery flow 2 350 ln/h (83 scfh)
. . . . . . . . . . . . . +3 % for exhausted flow 1 900 ln/h (67 scfh)
Capacity at max. deviation
supply air pressure air output capacity
1.4 bar (20 psig). . . . . . . . . . 2 700 ln/h ( 95 scfh)
2.0 bar (30 psig). . . . . . . . . . 3 500 ln/h (124 scfh)
4.0 bar (60 psig). . . . . . . . . . 5 500 ln/h (194 scfh)
6.0 bar (90 psig). . . . . . . . . . 7 500 ln/h (265 scfh) |
Materials | Base plate, manifold, I/P-housing,
rotation adapter . . . . . . . . . . Aluminum (Alloy No. 230) finished with DD-varnish Color gray or blue
Cover. . . . . . . . . . . . . . . . . . impact resistant polyester Color blue
All moving parts of feedback system . . . . . . . . . 1.4305 / 1.4571
Mounting bracket . . . . . . . . . 1.4301 |
Weight | single acting
without gauges . . . . . . . . . approx. 1.5 kg (3.3 lbs)
with gauges . . . . . . . . . . . approx. 1.7 kg (3.7 lbs)
double acting . . . . . . . . . . . . approx. 1.7 kg (3.7 lbs)
attachment kit
for diaphragm actuators . . approx. 0.3 kg (0.6 lbs)
for rotary actuators . . . . . . approx. 0.5 kg (1.1 lbs) |
愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

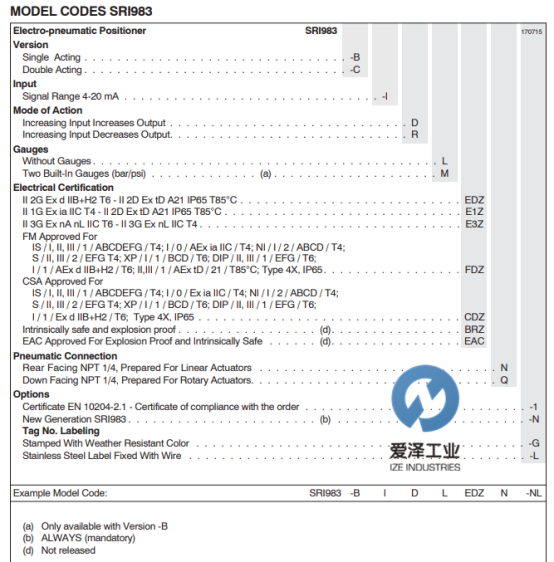

FOXBORO定位器SRI983系列型號解析：
