AIRTROL壓力調節器R-900系列技術參數
SPECIFICATIONS | |
R-900 SERIES | |
REGULATOR TYPE | Constant Bleed, Relieving |
WETTED MATERIALS | Polysulfone, Buna-N, EPDM, Acetal, Polyurethane, Stainless steel |
SUPPLY CONSUMPTION | < 9 SCIM (150 cc/min) @ 30 PSI (207 kPa) supply |
MAX SUPPLY | 150 PSI (1.03 MPa) |
TEMPERATURE RANGE | 40° – 150° F (4° – 66° C) |
EFFECT OF SUPPLY VARIATION | < 0.07 PSI (0.48 KPa) Per 10 PSI (68.9 kPa) supply change When dead-ended |
REPEATABILITY | < +/- 0.1 PSI (0.69 kPa) when supply is removed and re-applied |
SENSITIVITY | 1″ H2O (0.25 kPa) |
MAXIMUM FLOW | 2.3 cu.ft./min. (65 LPM) |
RELIEF CAPACITY | 0.5 cu.ft./min. (14 LPM) with outlet 5 PSI (34.5 kPa) above set-point |
RECOMMENDED FILTRATION | 5 micron |
R-910 SERIES | |
REGULATOR TYPE | Non-bleed, non-relieving |
REPEATABILITY | < +/- 0.25 PSI (1.72 kPa) when supply is removed and re-applied |
EFFECT OF SUPPLY VARIATION | < 0.1 PSI (0.69 kPa) Per 5 PSI (34.5 kPa) supply change |
R-920 SERIES | |
REGULATOR TYPE | Non-bleed, relieving |
SUPPLY CONSUMPTION (see note) | < 0.3 SCIM (5 cc/min.) |
REPEATABILITY | < +/- 0.25 PSI (1.72 kPa) when supply is removed and re-applied |
EFFECT OF SUPPLY VARIATION | < 0.1 PSI (0.69 kPa) per 5 PSI (34.5 kPa) supply change |
SENSITIVITY | 2″ H2O (0.5 kPa) |
AIRTROL壓力調節器R-900系列介紹
R-900系列穩壓器專為要求微型尺寸，輕巧和精密的應用而設計。10-32端口可容納各種微型配件，包括Airtrol組件B-062和B-125倒鉤配件。
The R-900 Series regulators are designed for applications requiring miniature size, light weight, and precision. 10-32 ports accommodate a wide range of miniature fittings, including Airtrol Components B-062 and B-125 barbed fittings.

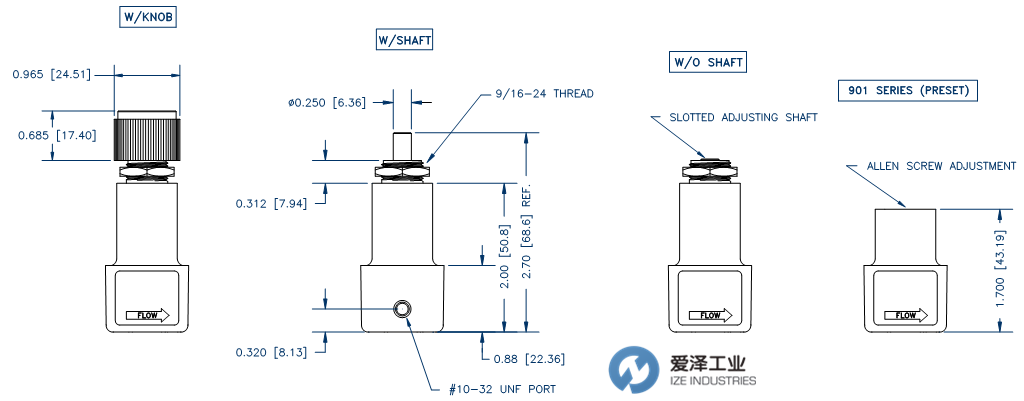

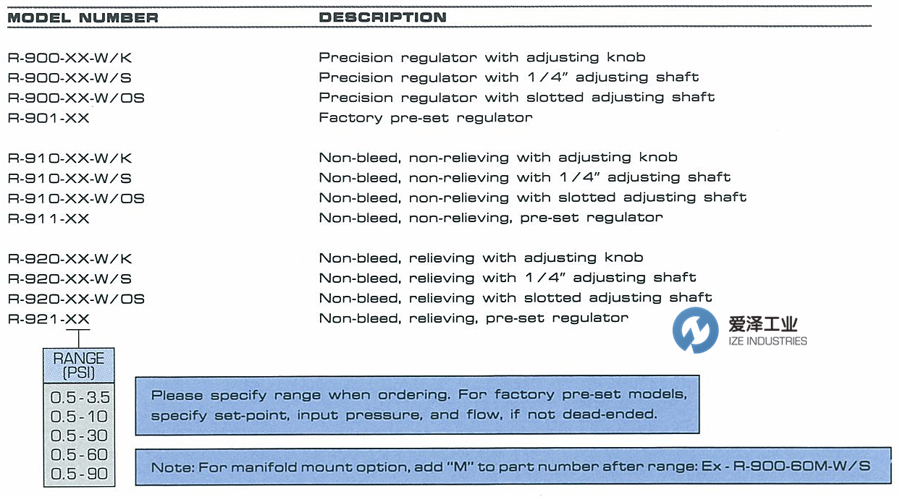

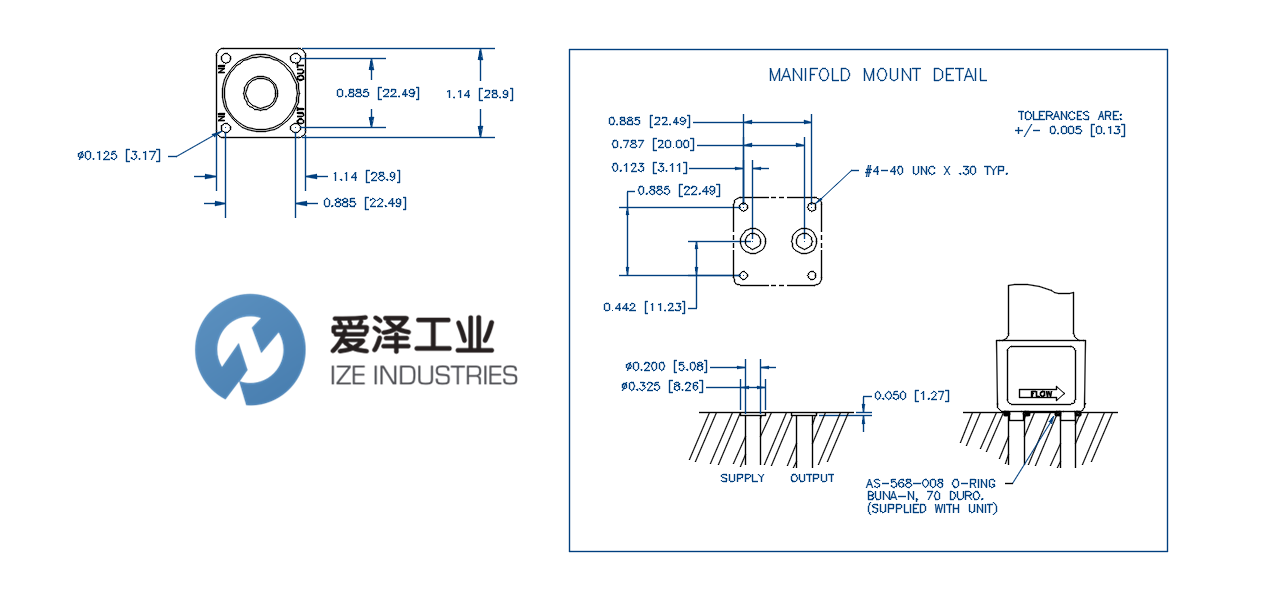

AIRTROL壓力調節器R-900系列產品選型及尺寸圖
AIRTROL壓力調節器R-900系列其他常用型號：
AIRTROL R-900-60-W / K
AIRTROL R-900-60W / S
AIRTROL R-900-30
AIRTROL R-900-10W / OS
AIRTROL R-900-90W / OS
AIRTROL R-900-60W / S
AIRTROL R-900-3.5W / K
AIRTROL R-900-60W / OS
AIRTROL R-900-3.5W / S
AIRTROL R-900-30W / OS
AIRTROL R-900-10W / K
AIRTROL R-900-90
AIRTROL R-900-30-W / K-B85
AIRTROL R-900-90W / S
AIRTROL R-900-3.5W /OS
AIRTROL R-900-30W / S
AIRTROL R-900-30-W / K
AIRTROL R-900-10
AIRTROL R-910-90-W/K
AIRTROL MINIATURE PRECISION PRESSURE REGULATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AIRTROL壓力調節器R-910-90-W/K的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for AIRTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
AIRTROL壓力調節器R-900系列R-910-90-W/K參數介紹
