AIRTROL壓力開關F-4200系列技術參數
SPECIFICATIONS | |
CONTACT FORM | Single Pole, Double Throw |
TERMINATIONS | .187 Quick-Connect |
AGENCY COMPLIANCES | UL/CSA Approved Microswitch |
OPERATING SPEED | 25 MSEC |
MATERIALS | |
Body= | Polysulfone 1 (Wetted Materials) |
Diaphragm= | Polyurethane 1 (Wetted Materials) |
Spring= | Stainless Steel |
Others= | Nylon, Carbon Filled Nylon, Acetal |
TEMPERATURE RANGE | 40° TO 150° F [4°-66° C] |
REPEATABILITY | < +/- 2% F.S. OR .15PSI, (1.03 kPa) whichever is greater, after 10,000 cycles |

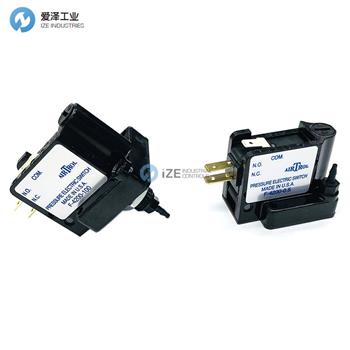

AIRTROL壓力開關F-4200系列介紹
The F-4200 Series pressure to electric switch is designed for the customer with cost and space limitations, and is available in adjustment ranges from .5 to 100 PSI full scale. Four mounting styles, plus a wide variety of options including gold contacts, factory pre-set and special deadbands, make the F-4200 series an excellent choice for the O.E.M.
F-4200 系列壓力電動開關專為具有成本和空間限制的客戶而設計，可在 0.5 至 100 PSI 滿量程的調節范圍內使用。 四種安裝方式，加上各種選項，包括金觸點、工廠預設和特殊死區，使 F-4200 系列成為 O.E.M. 的優質選擇。

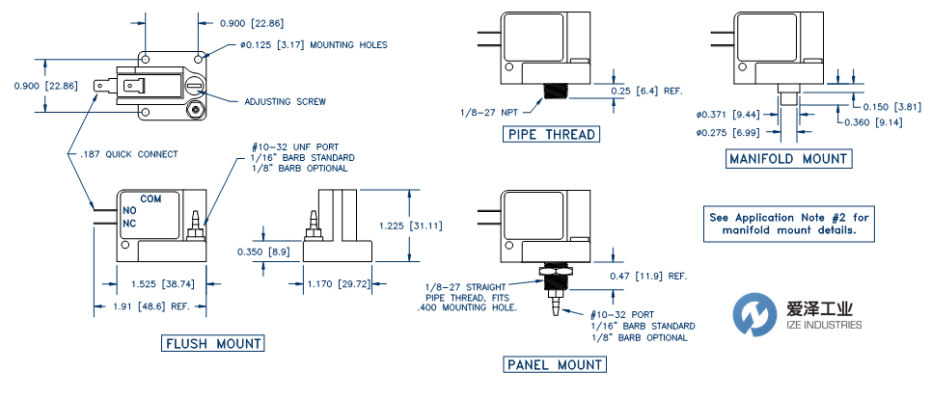

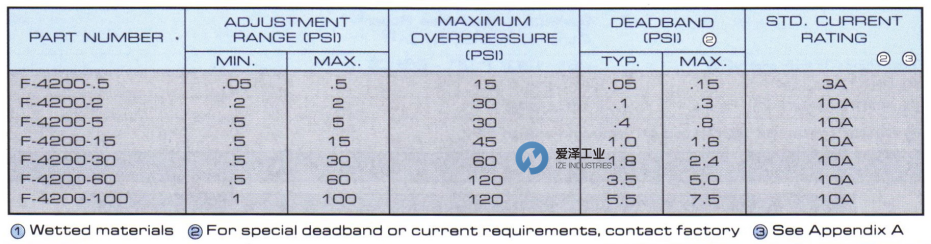

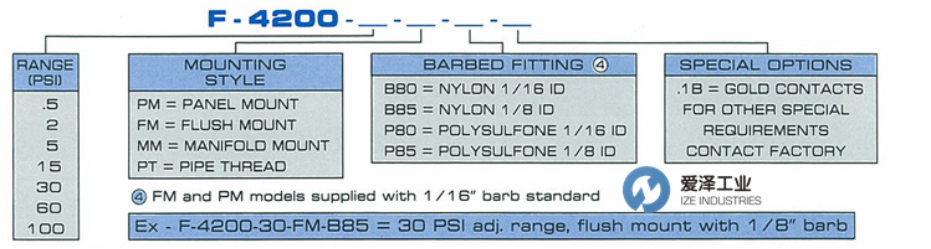

AIRTROL壓力開關F-4200系列產品選型及尺寸圖
AIRTROL壓力開關F-4200系列其他常用型號：
AIRTROL F-4200-100
AIRTROL F-4200-100-FM-B80
AIRTROL F-4200-0.5-FM-P85
AIRTROL F-4200-100-PT
AIRTROL MINIATURE PRECISION PRESSURE REGULATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AIRTROL壓力開關F-4200-0.5-FM-P85的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for AIRTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
AIRTROL壓力開關F-4200系列F-4200-0.5-FM-P85參數介紹
