CENTURY INSTRUMENT隔膜閥830-RV系列介紹
這種獨立的彈簧式隔膜減壓閥是自動操作的,無需空氣壓力或其他外部電源即可運行。尺寸為1/2"至8",適用于各種主體材料,襯里和隔膜,壓力釋放設置為10至150 psig。
非常適用于保護塑料或玻璃管道系統免受過壓,管道浪涌和水錘,隔離可能因真空條件而損壞的設備,將液壓頭保持在泵排放管路中或更換或在危險或腐蝕性過程中保護爆破片。
閥門將在預設壓力下釋放,然后在安全工作壓力恢復后自動重新安裝。從原始壓力設置調整在以下限制內提供; 如果原始設置為30 psig或更高,則加或減20 psig。如果原始設置為10 psig,則可用調整加20 psig減去0 psig。
830-RV不是彈出式安全閥,因此它不能提供完全彈開式動作,但會在上升壓力下逐漸打開,并在下降壓力時逐漸關閉。重新密封后,氣密封閉通常會產生3至10 psig的壓力。低于釋放設定壓力,取決于設定點是極高還是低。

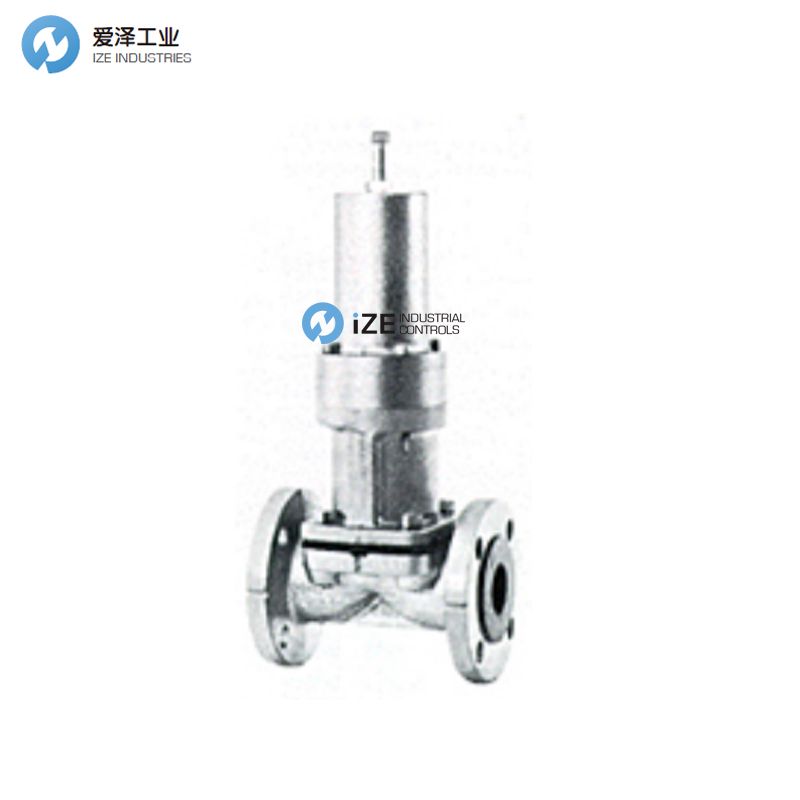

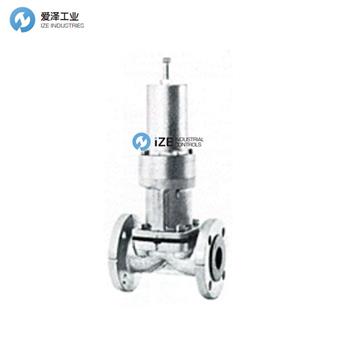

Model 830-RV Diaphragm Relief Valves
This self-contained, spring loaded diaphragm pressure relief valve is self-operated and requires no air pressure or other outside power source to function. Available in sizes 1/2" through 8" in a wide variety of body materials, linings and diaphragms and with pressure relief settings from 10 to 150 psig.
Ideal for applications such as the protection of piping systems of plastic or glass against over-pressure, pipe line surges and water hammer, to isolate equipment which might be damaged by vacuum conditions, to maintain a liquid head in a pump discharge line or to replace or protect rupture discs in hazardous or corrosive processes.
The valve will relieve at a preset pressure, then reseat itself automatically when safe working pressure is restored. Adjustment from the original pressure setting is provided within the following limits; plus or minus 20 psig. if the original setting is 30 psig. or higher. If the original setting is 10 psig. the adjustment available is plus 20 psig. minus 0 psig.
The 830-RV is not a pop-safety valve and therefore it does not provide full pop-open action but will gradually open on a rising pressure and gradually close on a falling pressure. Upon reseating, bubble-tight closure usually results at 3 to 10 psig. lower than the relieving set pressure depending on whether the set point is extremely high or low.

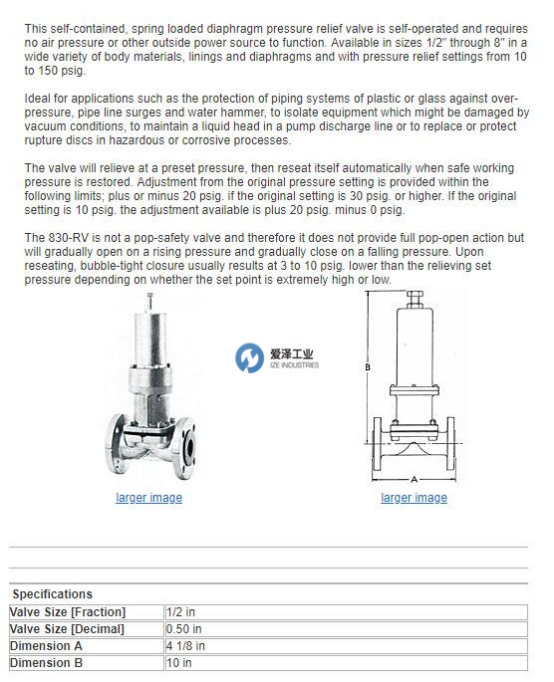

CENTURY INSTRUMENT隔膜閥830-RV-005參數表及尺寸圖
CENTURY INSTRUMENT隔膜閥830-RV系列
愛澤工業(IZE INDUSTRIES)特價經銷、常用CENTURY INSTRUMENT隔膜閥型號:
CENTURY INSTRUMENT隔膜閥830-RV-005
CENTURY INSTRUMENT隔膜閥830-RV-0075
CENTURY INSTRUMENT隔膜閥830-RV-1
CENTURY INSTRUMENT隔膜閥830-RV-125
CENTURY INSTRUMENT隔膜閥830-RV-150
CENTURY INSTRUMENT隔膜閥830-RV-2
CENTURY INSTRUMENT隔膜閥830-RV-250
CENTURY INSTRUMENT隔膜閥830-RV-3
CENTURY INSTRUMENT隔膜閥830-RV-4
CENTURY INSTRUMENT隔膜閥830-RV-6
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的首選渠道。
如果有任何關于CENTURY INSTRUMENT隔膜閥830-RV系列的疑問,請隨時與我們溝通,愛澤工業(86-021-31006702)。我們將盡全力解決您的問題。
有關CENTURY INSTRUMENT隔膜閥830-RV系列更詳細的信息或者購買CENTURY INSTRUMENT隔膜閥830-RV系列相關產品,請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.
CENTURY INSTRUMENT隔膜閥830-RV系列產品介紹
