FOXBORO定位器SRI986系列規格描述
Input | Signal range . . . . . . . . . . . . 4 ... 20 mA or
0 ... 20 mA or
2 ... 10 V (On request) or
0 ... 10 V (On request)
Input resistance . . . . . . . . . . < 200 Ohms at 20 °C
Stroke range . . . . . . . . . . . . 8 ... 100 mm (0.3 ... 4 in)
Angular range
linear. . . . . . . . . . . . . . . . . 30 ° ... 120 °
equal percentage . . . . . . . 90 °; from 70 ° linear |
Output | Output to actuator . . . . . . . . 0 ... 100 % supply air pressure |
Supply | Supply air pressure . . . . . . . 1.4 ... 6 bar (20 ... 90 psig)
Air supply. . . . . . . . . . . . . . . according to ISO 8573-1
- Solid particle size and density class 2
- Oil rate . . . . . . . . . . . . . . class 3
- Pressure dew point 10 K under ambient temperature
The use of filter regulator for air supply of positioner is
strongly recommended. It reduces the air pressure to
actuator’s maximum pressure and keeps it constant |
Ambient conditions | Ambient temperature 1). . . . . –40 ... 80°C (–40 ... 176°F)
Relative humidity . . . . . . . . . up to 100 %
Operating conditions
according to IEC 654-1. . . . . The device can be operated
at a class D2 location
Transport and
storage temperature. . . . . . . –50 ... 80°C (–58 ... 176°F)
Storage conditions
acc. to IEC 60 721-3-1 . . . . 1K5, 1B1, 1C2, 1S3, 1M2
Protection class . . . . . . . . . . IP 54; IP65 as an option
IP65 protection class can be selected from model code
option –F or can be retrofit on existing device by ordering
the kit EW 411 406 301. |
Electromagnetic compatibility EMC | Operating conditions ...... industrial environment
Immunity according to
- EN 61326, EN 61000-6-2. . fulfilled
Emission according to
- EN 61326, Class A,
- EN 61000-6-3 . . . . . . . . . . fulfilled
NAMUR recommendation . . fulfilled |
CE marking | Electromagnetic compatibility 2004/108/EC
Low-voltage regulation . . . . . not applicable |
Response characteristic 2) | Amplification . . . . . . . . . . . . adjustable
Sensitivity . . . . . . . . . . . . . . < 0.1 % F.S.
Non-linearity (terminal
based adjustment) . . . . . . . . < 1.0 % F.S.
Hysteresis . . . . . . . . . . . . . . < 0.3 % F.S.
Supply air dependency. . . . . < 0.3 % / 0.1 bar (1.5 psi)
Temperature effect. . . . . . . . < 0.5 % / 10 K |
Air consumption | Air consumption single acting
Supply air 1.4 bar (20 psig) 200 ln/h ( 7.1 scfh)
Supply air 3.0 bar (45 psig) 400 ln/h (12.4 scfh)
Supply air 6.0 bar (90 psig) 600 ln/h (21.2 scfh)
Air consumption double acting
Supply air 1.4 bar (20 psig) 350 ln/h (10.6 scfh)
Supply air 3.0 bar (45 psig) 550 ln/h (17.7 scfh)
Supply air 6.0 bar (90 psig) 750 ln/h (33.5 scfh) |
Air output | Load effect 3) . . . . . . . . . . . . –3 % for delivery flow
2350 ln/h (83 scfh)
+3 % for exhausted flow
1900 ln/h (67 scfh) |
愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

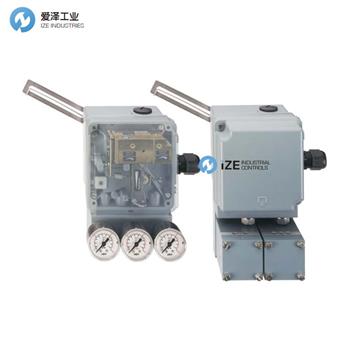

FOXBORO定位器SRI986系列描述
SRI986定位器用于操作來自控制系統的氣動閥門執行器和帶有電控信號的電氣控制器。 它用于減少閥門摩擦的不利影響，以獲得更高的推力和更短的定位時間。
特征
·獨立調整行程范圍和零點
·可調節的放大和阻尼
·分割范圍可達3倍
·輸入信號0/4至20 mA，0/2至10 V.
·供應壓力高達6 bar（90psig）
·各個方向的低振動效果
·符合IEC 534第6部分（NAMUR）的安裝
·旋轉適配器，最大角度為120°
·防爆：II 2 G EEx ia IIC T6符合ATEX或本安全根據FM和CSA
·附加設備的模塊化系統
-限位開關
-位置發射器
-助推器
-連接歧管

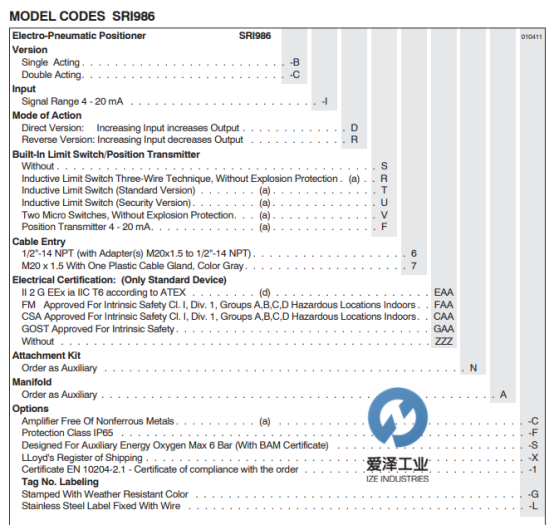

選型參考
FOXBORO定位器SRI986其他常見型號：
FOXBORO SRI986-CIDT7EAANA
FOXBORO SRI986-BIDS7EAANA
FOXBORO SRI986-CIDS7EAANA
FOXBORO SRI986-BIDS7ZZZNA
FOXBORO SRI986-BIDS7EAANA
FOXBORO SRI986-BIDS2ZZZ
FOXBORO SRI990-BIMS7NFM
FOXBORO Locator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FOXBORO定位器 SRI986-BIDS7EAANA的疑問，請隨時與我們溝通，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
FOXBORO定位器SRI986系列 SRI986-BIDS7EAANA產品特點及參數描述
