KITZSCT閥VLD4CS-VFC-EP-316L產品參數

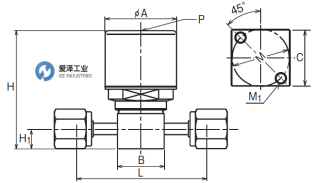

Dimensions | |
Type | VLD4CS-VFC-EP-316L |
End Connection | 1/4" CVC Female |
L | 3.27(83.0) |
L1* | - |
H | 3.31(84.0) |
H1 | 0.63(16.0) |
A | 2.17(55.0) |
B | 1.42(36.0) |
C | 1.42(36.0) |
P | Rc1/8 |
M | 1.10(28.0) |
M1 | 2-M5 Depth 0.20 (5.0) |
Model |
|
Specifications | ||
Size | VLD4 (1/4") | |
Cv | 0.27 | |
Maximum Operating Pressure | 0.98MPa (G) | |
Wetted area Valume | 1.2cm3 | |
Fluid Temperature | PCTFE | -10oC~80oC |
PFA(Manual) | -10oC~150oC | |
PI(Manual) | -10oC~150oC | |
Leak Rates | Across the Seat He Leak Test Rates | ≤ 1×10-10Pa·m3/sec |
Inboard He Leak Test Rates | ≤ 1×10-10Pa·m3/sec | |
Atmospheric Temperature | -10oC~60oC | |
Actuation Pressure (Pneumatic) | 0.4~0.7MPa (G) | |
Cycle Life (N2 Charged, In-house Test) | Manual Valve | 100,000 cycles |
Pneumatic Valve | 4 million cycles | |
KITZSCT閥VLD系列產品介紹
VLD系列體現了對KD系列中對簡單性和實用性的追求。 VLD系列通過最小化關鍵零件的數量來簡化。
特點
VLD系列在保持基本性能，材料和清潔度不變的同時，通過減少零件數量和更改檢查和加工方法，實現了安全性和低成本。
因?yàn)榍鍧嵑蜋z查過程與我們的常規模型相同，所以可靠性和耐用性沒有變化。
通過最高水平的制造環境和拋光工藝，實現半導體中使用的高純氣體的最大顆粒性能。
The VLD series embodies the pursuit of simplicity and utility found in the KD series. The VLD series achieves simplification through the minimization of the number of critical parts.
Features
While maintaining the same degree of basic performance, material, and cleaning, the VLD series realizes security and low cost through overall reduction of the number of parts and changes to the review and processing methodology.
Because the cleaning and inspection processes are the same as our conventional model, there is no change in reliability and durability.
Achieves maximum particle performance for high-purity gases used in semiconductor by the highest-level manufacturing environment and polishing process.

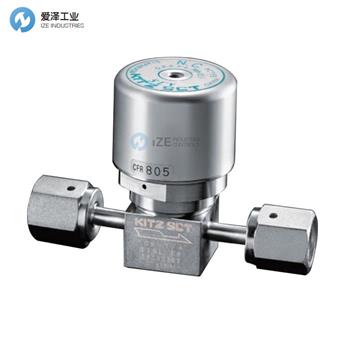

KITZSCT閥VLD4CS-VFC-EP-316L
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件KITZSCT 閥部分型號：
KITZSCT VLD4CS-VFC-RD-STD-316L
KITZSCT VLD4CS-VFC-RD-EP-316L
KITZSCT VLD4CS-VFC-RD-SEP-316LE
KITZSCT VLD4CS-VFC-GR-STD-316L
KITZSCT VLD4CS-VFC-GR-EP-316L
KITZSCT VLD4CS-VFC-GR-SEP-316LE
KITZSCT VLD4CS-VFC-SL-EP-316L
KITZSCT VLD4CS-VFC-SL-SEP-316LE
KITZSCT VLD4CS-VFC-BK-EP-316L
KITZSCT VLD4CS-VFC-BK-SEP-316LE
KITZSCT VLD4CS-VFC-YE-EP-316L
KITZSCT VLD4CS-VFC-YE-SEP-316LE
KITZSCT VLD4CS-VFC-BR-EP-316L
KITZSCT VLD4CS-VFC-BR-SEP-316LE
KITZSCT valve NEW + ORIGINAL+ ONE YEAR WARRANTY
