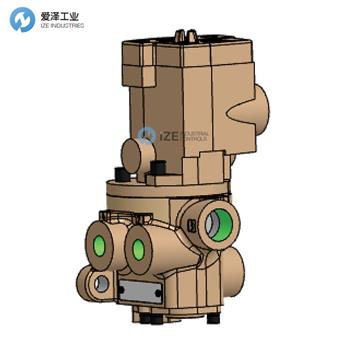

ROSS閥D2776B5001技術參數
DESCRIPTION: | 27 Series, 4/2 Single Solenoid Controlled, Spring Return, 3/4" In-Out,1" Exhaust BSPP |
Function | 4/2 Single |
Return Type | Spring |
Default Position | - |
Actuation | Solenoid Controlled |
Port Size (in-Out) | 3/4 |
Port Size (Exhaust) | 1 |
Port Thread | BSPP |
Basic Size | 3/4 |
Adapter | - |
Cv (In-Out) | 7 |
Cv (Exhaust) | 9.3 |
Construction | Poppet |
Mounting | Inline |
Manual Override | Non-locking |
Connector Type | Hard wired (1/2 inch conduit) |
Certifications | SIL |
Flow Media | Filtered Air |
Inlet Pressure Range | 15 TO 150 PSIG (1 TO 10 BAR) |
Media Temperature Range | 40 TO 175 F (4 TO 80 C) |
Ambient Temperature Range | 40 TO 175 F (4 TO 80 C) |
WEIGHT: | 5.3 lbs (2.4 kg) |
ROSS閥27系列介紹
ROSS提升閥27系列是直裝式閥門,可提供單或雙空氣先導或電磁先導控制。這種高流量2位閥有2、3和4通配置。
提升閥芯結構具有較高的耐污性
可現場配置的外部先導電源
集成適配器,用于特殊控制功能
The ROSS Poppet valves 27 Series are inline mounted valves available with single or double air pilot or solenoid pilot control. This high flow 2 position valve is available in 2, 3 and 4-way configurations.
Poppet construction for high dirt tolerance
Field configurable external pilot supply
Integrated adaptors for special control functions
ROSS閥27系列其他常用型號:
ROSS D2776B2001
ROSS D2776B3001
ROSS D2776B4011
ROSS D2776B4001
ROSS D2776B5001
ROSS D2776B6011
ROSS D2776B6001
ROSS D2776B7001
ROSS D2776B8011
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
