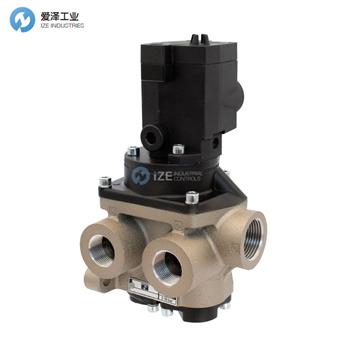

ROSS閥D2776B6011W介紹
Valve Type | Directional Control |
Series | 27 |
Application | General |
Actuation | Electrical |
Voltage | 24 VDC |
Function | 4/2 Single Solenoid |
Default Position | Normally Open |
Return | Spring |
Thread Type | G |
Inlet Pipe Size | 1" |
Outlet Pipe Size | 1" |
Exhaust Pipe Size | 1" |
Construction | Poppet |
Mounting | Inline |
Connection | Hardwired |
Pilot Type | Internal/External |
Manual Override | Non-locking |
Size | 3/4" |
Cv (1-2) | 7.8 |
Cv (1-4) | 7.8 |
Cv (2-3) | 10 |
Cv (4-3) | 10 |
Duty Rating | Continuous Duty |
Power Consumption | 20 watts |
Ambient Temperature | 40 to 120 F (4 to 50 C) |
Media Temperature | 40 to 175 F (4 to 80 C) |
Fluid Media | Filtered Air |
Operating Pressure | 15 to 150 psig (1 to 10 bar) |
Pilot Supply Minimum | equal to or greater than inlet pressure |
Length | 5.15 in (131 mm) |
Width | 4.63 in (118 mm) |
Height | 8.94 in (227 mm) |
Weight | 5.3 lb (2.4 kg) |
Valve Body Material | Cast Aluminum |
Poppet/Spool Material | Acetal, Stainless Steel |
Seal Material | Buna-N |
ROSS閥27系列其他常用型號：
ROSS D2773B8011
ROSS D2771B6011
ROSS D2771B8011
ROSS D2776B6011W
ROSS D2176C4001
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS閥D2776B6011W的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
