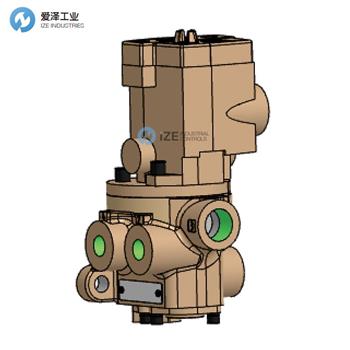

ROSS閥D2776B4011技術參數
DESCRIPTION: | 27 Series, 4/2 Single Solenoid Controlled, Spring Return, 1/2" In-Out,1/2" Exhaust BSPP |
Function | 4/2 Single |
Return Type | Spring |
Default Position | - |
Actuation | Solenoid Controlled |
Port Size (in-Out) | 1/2 |
Port Size (Exhaust) | 1/2 |
Port Thread | BSPP |
Basic Size | 3/8 |
Adapter | - |
Cv (In-Out) | 3.1 |
Cv (Exhaust) | 7.3 |
Construction | Poppet |
Mounting | Inline |
Manual Override | Non-locking |
Connector Type | Hard wired (1/2 inch conduit) |
Certifications | SIL |
Flow Media | Filtered Air |
Inlet Pressure Range | 15 TO 150 PSIG (1 TO 10 BAR) |
Media Temperature Range | 40 TO 175 F (4 TO 80 C) |
Ambient Temperature Range | 40 TO 175 F (4 TO 80 C) |
WEIGHT: | 3.0 lbs (1.36 kg) |
ROSS閥27系列介紹
ROSS提升閥27系列是直裝式閥門，可提供單或雙空氣先導或電磁先導控制。這種高流量2位閥有2、3和4通配置。
提升閥芯結構具有較高的耐污性
可現場配置的外部先導電源
集成適配器，用于特殊控制功能
The ROSS Poppet valves 27 Series are inline mounted valves available with single or double air pilot or solenoid pilot control. This high flow 2 position valve is available in 2, 3 and 4-way configurations.
Poppet construction for high dirt tolerance
Field configurable external pilot supply
Integrated adaptors for special control functions
ROSS閥27系列其他常用型號：
ROSS D2776B2001
ROSS D2776B3001
ROSS D2776B4011
ROSS D2776B4001
ROSS D2776B5001
ROSS D2776B6011
ROSS D2776B6001
ROSS D2776B7001
ROSS D2776B8011
