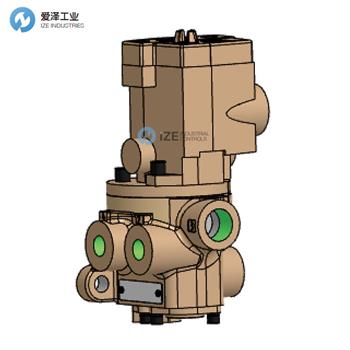

ROSS閥D2776B4001技術參數
DESCRIPTION: | 27 Series, 4/2 Single Solenoid Controlled, Spring Return, 1/2" In-Out,1" Exhaust BSPP |
Function | 4/2 Single |
Return Type | Spring |
Default Position | - |
Actuation | Solenoid Controlled |
Port Size (in-Out) | 1/2 |
Port Size (Exhaust) | 1 |
Port Thread | BSPP |
Basic Size | 3/4 |
Adapter | - |
Cv (In-Out) | 5.6 |
Cv (Exhaust) | 8.1 |
Construction | Poppet |
Mounting | Inline |
Manual Override | Non-locking |
Connector Type | Hard wired (1/2 inch conduit) |
Certifications | SIL |
Flow Media | Filtered Air |
Inlet Pressure Range | 15 TO 150 PSIG (1 TO 10 BAR) |
Media Temperature Range | 40 TO 175 F (4 TO 80 C) |
Ambient Temperature Range | 40 TO 175 F (4 TO 80 C) |
WEIGHT: | 5.3 lbs (2.4 kg) |
ROSS閥27系列介紹
ROSS提升閥27系列是直裝式閥門，可提供單或雙空氣先導或電磁先導控制。這種高流量2位閥有2、3和4通配置。
提升閥芯結構具有較高的耐污性
可現場配置的外部先導電源
集成適配器，用于特殊控制功能
The ROSS Poppet valves 27 Series are inline mounted valves available with single or double air pilot or solenoid pilot control. This high flow 2 position valve is available in 2, 3 and 4-way configurations.
Poppet construction for high dirt tolerance
Field configurable external pilot supply
Integrated adaptors for special control functions
ROSS閥27系列其他常用型號：
ROSS D2776B2001
ROSS D2776B3001
ROSS D2776B4011
ROSS D2776B4001
ROSS D2776B5001
ROSS D2776B6011
ROSS D2776B6001
ROSS D2776B7001
ROSS D2776B8011
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS閥D2776B4001的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
