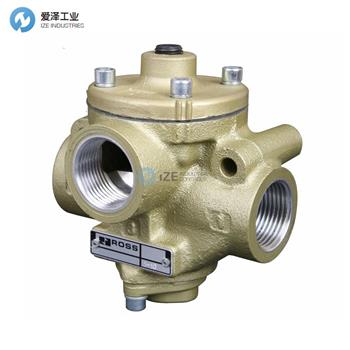

ROSS閥2754A8011技術參數
Description | |
Function | 3/2 Single |
Return Type | Spring |
Default Position | Normally Open |
Actuation | Pressure Controlled |
Port Size (in-Out) | 1-1/2 |
Port Size (Exhaust) | 1-1/2 |
Port Thread | NPT |
Basic Size | 1-1/4 |
Adapter | — |
Cv (In-Out) | 19 |
Cv (Exhaust) | 23 |
Voltage | — |
Construction | Poppet |
Mounting | Inline |
Manual Override | Non-locking |
Connector Type | Hard wired (1/2 inch conduit) |
Certifications | SIL |
Flow Media | Filtered Air |
Inlet Pressure Range | 15 TO 150 PSIG (1 TO 10 BAR) |
Media Temperature Range | 40 TO 175 F (4 TO 80 C) |
Ambient Temperature Range | 40 TO 175 F (4 TO 80 C) |
WEIGHT: | 6.0 lbs (2.72kg) |
ROSS閥27系列介紹
ROSS提升閥27系列是直裝式閥門，可提供單或雙空氣先導或電磁先導控制。這種高流量2位閥有2、3和4通配置。
提升閥芯結構具有較高的耐污性
可現場配置的外部先導電源
集成適配器，用于特殊控制功能
The ROSS Poppet valves 27 Series are inline mounted valves available with single or double air pilot or solenoid pilot control. This high flow 2 position valve is available in 2, 3 and 4-way configurations.
Poppet construction for high dirt tolerance
Field configurable external pilot supply
Integrated adaptors for special control functions
ROSS閥27系列其他常用型號：
ROSS 2754A2001
ROSS 2754A3001
ROSS 2754A4011
ROSS 2754A4001
ROSS 2754A5001
ROSS 2754A6011
ROSS 2754A6001
ROSS 2754A7001
ROSS 2754A8011
ROSS 2754A8001
ROSS 2754A9001
ROSS 2754A9011
