ROSS閥27系列規格描述
3-Way 2-Position Valves, Spring Return | |||||||||||||||||
Port Size | Body Size | Normally Closed | Normally Open | CV | Average Response Constants** | Weight lb (kg) | |||||||||||
M | F | ||||||||||||||||
1, 2 | 3 | Valve Model Number* | Valve Model Number* | NC | NO | NC | NO | ||||||||||
NPT Threads | G Threads | NPT Threads | G Threads | 1-2 | 2-3 | 1-2 | 2-3 | 1-2 | 2-3 | 1-2 | 2-3 | ||||||
1/4 | 1/2 | 3/8 | 2773B2001W | D2773B2001W | 2774B2001W | D2774B2001W | 2.5 | 3.1 | 2.3 | 2.7 | 10 | 0.9 | 0.8 | 0.99 | 0.88 | 2.5 (1.2) | |
3/8 | 1/2 | 3/8 | 2773B3001W | D2773B3001W | 2774B3001W | D2774B3001W | 3.6 | 5.3 | 2.8 | 3.2 | 10 | 0.7 | 0.5 | 0.9 | 0.77 | 2.5 (1.2) | |
1/2 | 1/2 | 3/8 | 2773B4011W | D2773B4011W | 2774B4011W | D2774B4011W | 3.3 | 5.3 | 2.8 | 3.2 | 10 | 0.75 | 0.5 | 0.9 | 0.76 | 2.5 (1.2) | |
1/2 | 1 | 3/4 | 2773B4001W | D2773B4001W | 2774B4001W | D2774B4001W | 6.3 | 9.2 | 6.3 | 8 | 11 | 0.43 | 0.27 | 0.46 | 0.6 | 3.3 (1.5) | |
3/4 | 1 | 3/4 | 2773B5001W | D2773B5001W | 2774B5001W | D2774B5001W | 7.7 | 11 | 6.9 | 7.4 | 11 | 0.36 | 0.26 | 0.45 | 0.6 | 3.3 (1.5) | |
1 | 1 | 3/4 | 2773B6011W | D2773B6011W | 2774B6011W | D2774B6011W | 8 | 12 | 6.8 | 7.5 | 11 | 0.34 | 0.25 | 0.4 | 0.59 | 3.3 (1.5) | |
1 | 1? | 1? | 2773B6001W | D2773B6001W | 2774B6001W | D2774B6001W | 23 | 34 | 17 | 24 | 28 | 0.17 | 0.14 | 0.2 | 0.17 | 7.0 (3.2) | |
1? | 1? | 1? | 2773B7001W | D2773B7001W | 2774B7001W | D2774B7001W | 30 | 32 | 19 | 24 | 28 | 0.15 | 0.15 | 0.19 | 0.17 | 7.0 (3.2) | |
1? | 1? | 1? | 2773B8011W | D2773B8011W | 2774B8011W | D2774B8011W | 30 | 31 | 19 | 23 | 28 | 0.15 | 0.15 | 0.19 | 0.16 | 7.0 (3.2) | |
1? | 2? | 2 | 2773B8001W | D2773B8001W | 2774B8001W | D2774B8001W | 68 | 70 | 57 | 59 | 76 | 0.05 | 0.04 | 0.07 | 0.04 | 16.5 (7.4) | |
2? | 2? | 2 | 2773B9001W | D2773B9001W | 2774B9001W | D2774B9001W | 70 | 70 | 58 | 61 | 76 | 0.05 | 0.04 | 0.05 | 0.04 | 16.5 (7.4) | |
2? | 2? | 2 | 2773B9011W | D2773B9011W | 2774B9011W | D2774B9011W | 70 | 71 | 54 | 55 | 76 | 0.05 | 0.04 | 0.5 | 0.04 | 16.5 (7.4) | |
# Voltage: W=24 VDC; Z=110-120 VAC, 50/60 Hz, e.g., 2773B2001Z. For other voltages, consult ROSS. | |||||||||||||||||

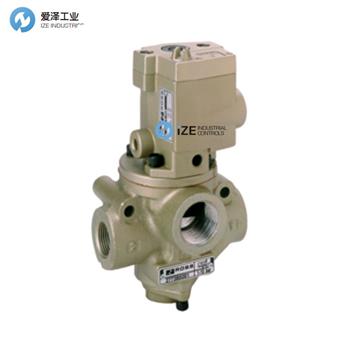

ROSS電磁閥27系列介紹
ROSS提升閥27系列是在線安裝閥，可提供單空氣或雙空氣先導閥或電磁先導控制。 這種高流量2位閥可提供2,3和4路配置。
? 提升閥結構，耐臟性高
? 現場可配置外部導頻電源
? 用于特殊控制功能的集成適配器
The ROSS Poppet valves 27 Series are inline mounted valves available with single or double air pilot or solenoid pilot control. This high flow 2 position valve is available in 2, 3 and 4-way configurations.
? Poppet construction for high dirt tolerance
? Field configurable external pilot supply
? Integrated adaptors for special control functions
ROSS閥27系列其他常用型號：
ROSS 2773B2001W
ROSS 2773B3001W
ROSS 2773B4011W
ROSS 2773B4001W
ROSS 2773B5001W
ROSS 2773B6011W
ROSS 2773B6001W
ROSS 2773B7001W
ROSS 2773B8011W
ROSS 2773B8001W
ROSS 2773B9001W
ROSS 2773B9011W
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS電磁閥2773B7930的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
