ROSS電磁閥D2771B7001W技術參數
Function | 2/2 Single |
Return Type | Spring |
Default Position | Normally Closed |
Actuation | Solenoid Controlled |
Port Size (in-Out) | 1-1/4 |
Port Size (Exhaust) | - |
Port Thread | BSPP |
Basic Size | 1-1/4 |
Adapter | - |
Cv (Exhaust) | - |
Voltage | 24 VDC |
Construction | Poppet |
Mounting | Inline |
Manual Override | Non-locking |
Connector Type | Hard wired (1/2 inch conduit) |
Certifications | SIL |
Flow Media | Filtered Air |
Inlet Pressure Range | 15 TO 150 PSIG (1 TO 10 BAR) |
Media Temperature Range | 40 TO 175 F (4 TO 80 C) |
Ambient Temperature Range | 40 TO 175 F (4 TO 80 C) |
WEIGHT: | 7.0 lbs (3.18 kg) |
ROSS電磁閥27系列介紹
ROSS提升閥27系列是在線安裝閥，可提供單空氣或雙空氣先導閥或電磁先導控制。 這種高流量2位閥可提供2,3和4路配置。
? 提升閥結構，耐臟性高
? 現場可配置外部導頻電源
? 用于特殊控制功能的集成適配器
The ROSS Poppet valves 27 Series are inline mounted valves available with single or double air pilot or solenoid pilot control. This high flow 2 position valve is available in 2, 3 and 4-way configurations.
? Poppet construction for high dirt tolerance
? Field configurable external pilot supply
? Integrated adaptors for special control functions

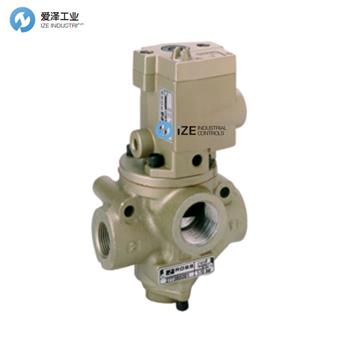

ROSS電磁閥27系列 示例D2771B7001W
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件ROSS電磁閥型號：
ROSS電磁閥D2771B7001W
ROSS電磁閥2781B3005
ROSS電磁閥2774B3001W
ROSS電磁閥2776B2001Z
ROSS電磁閥2771B7005Z
ROSS電磁閥2771B7001Z
ROSS電磁閥D2776B5001Z
ROSS電磁閥D2751A9011
ROSS電磁閥D2776B7008Z
ROSS電磁閥2781A6012
ROSS電磁閥D2751B2008
ROSS電磁閥D2752B8018
ROSS電磁閥D2754A2003
ROSS電磁閥D2754A6007
ROSS電磁閥D2754A8013
ROSS電磁閥D2771B6015W
ROSS電磁閥D2772B4005Z
ROSS電磁閥D2773B5007Z
ROSS電磁閥D2773B7007W
ROSS電磁閥D2782B5004
ROSS電磁閥D2783B5004
ROSS電磁閥D2783B7005
ROSS電磁閥D2786A3002
ROSS電磁閥2756A4014
ROSS電磁閥2772B3001W
ROSS電磁閥D2774B6001W
ROSS電磁閥D2772B6001Z
ROSS電磁閥D2753A6001
ROSS電磁閥D2771B9011Z
ROSS電磁閥2754A9011
ROSS電磁閥D2771B8014W
ROSS電磁閥D2771B6014Z
ROSS電磁閥D2774B9011W
ROSS電磁閥D2773B5003W
ROSS電磁閥2774B5001W
ROSS電磁閥2771B5005W
ROSS電磁閥2751A5007
ROSS電磁閥D2783B5005
ROSS電磁閥2773B7009W
ROSS電磁閥2753B7004
ROSS電磁閥2751A6012
ROSS電磁閥2752B7008
ROSS電磁閥2782B7004
ROSS電磁閥D2751B7004
ROSS電磁閥2751A8017
ROSS電磁閥2752A8001
ROSS電磁閥2753A9001
ROSS電磁閥2752A5007
ROSS電磁閥2751A8001
ROSS電磁閥D2772B3005W
ROSS電磁閥2786A6015
ROSS電磁閥2772B9001W
ROSS電磁閥D2773B6003W
ROSS電磁閥D2756A6004
ROSS電磁閥D2783A6013
ROSS電磁閥D2784A6013
ROSS電磁閥2751B6004
ROSS電磁閥D2752A6003
ROSS電磁閥2754A6017
ROSS電磁閥D2754B6014
ROSS電磁閥D2773B6003Z
ROSS電磁閥D2774B6016W
ROSS電磁閥D2773B6019Z
ROSS電磁閥D2751A6007
ROSS電磁閥D2771B4004Z
ROSS電磁閥D2773B6019W
ROSS電磁閥D2773B4019W
ROSS電磁閥D2771B4014W
ROSS電磁閥2774B2006Z
ROSS電磁閥2773B3003W
ROSS電磁閥D2771B3005W
ROSS電磁閥D2773B6006Z
ROSS電磁閥2776B6011Z
ROSS電磁閥D2773B4011Z
ROSS電磁閥2751B3004
ROSS電磁閥D2773B2003W
ROSS電磁閥D2773B2009W
ROSS電磁閥D2774B6006Z
ROSS電磁閥D2774B5003W
ROSS電磁閥D2772B6015W
ROSS電磁閥2773B5007W
ROSS電磁閥2782B3004
ROSS電磁閥2752B2008
ROSS電磁閥D2773B4001Z
ROSS電磁閥D2776B4003Z
ROSS電磁閥D2776B8011Z
ROSS電磁閥2786A5001
ROSS電磁閥2756A7001
ROSS電磁閥2756A6004
ROSS電磁閥2754A2003
ROSS電磁閥2751B4018
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS電磁閥27系列 示例D2771B7001W的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
有關ROSS電磁閥27系列 示例D2771B7001W更詳細的信息或者購買美國ROSS相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
ROSS電磁閥27系列介紹及D2771B7001W技術參數
