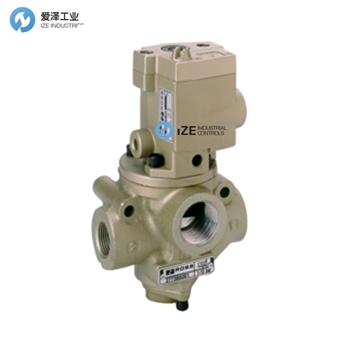

ROSS閥2774B4001技術參數
Description | 27 Series, |
Valve Type | Directional Control |
Series | 27 |
Application | General |
Return | Spring |
Thread Type | NPT |
Construction | Poppet |
Mounting | Inline |
Connection | Hardwired |
Manual Override | Non-locking |
Duty Rating | Continuous Duty |
Media Temperature | 40 to 175 F (4 to 80 C) |
Media Temperature (Celsius) | 4 to 80 |
Fluid Media | Filtered Air |
Operating Pressure | 15 to 150 psig (1 to 10 bar) |
Operating Pressure (bar) | 1 to 10 |
Pilot Supply Minimum | equal to or greater than inlet pressure |
Valve Body Material | Cast Aluminum |
Poppet/Spool Material | Acetal, Stainless Steel |
Seal Material | Buna-N |
Actuation | Electrical |
Default Position | Normally Open |
Exhaust Pipe Size | 1" |
Pilot Type | Internal/External |
Size | 3/4" |
Power Consumption | 190 VA inrush, 40 VA holding on 50 or 60 Hz |
Ambient Temperature | 40 to 120 F (4 to 50 C) |
Ambient Temperature (Celsius) | 4 to 50 |
Length (mm) | 116 |
Inlet Pipe Size | 1/2" |
Outlet Pipe Size | 1/2" |
Cv (1-2) | 6.3 |
Function | 3/2 Single Solenoid |
Width | 3.59 in (91 mm) |
Width (mm) | 91 |
Weight | 3.3 lb (1.5 kg) |
Weight (kg) | 1.5 |
Length | 4.46 in (116 mm) |
Height | 7.89 in (200 mm) |
Height (mm) | 200 |
Cv (1-4) | 8 |
Weight | 3.3 lbs (1.5 kg) |
ROSS閥2774B4001產品介紹
?” 至 2 ?” 端口尺寸
提升閥
內聯安裝
高流量
內部或外部；易于現場轉換以與外部先導電源一起使用
在閥門的整個生命周期內保持一致的響應時間
?” to 2 ?” Port Sizes
Poppet valves
Inline mounted
High Flow Rate
Internal or external; easily field-convertible for use with an external pilot supply
Consistent response time over the life of the valve
ROSS閥27系列其他常用型號：
ROSS 2774B4001Z
ROSS 2774B4001D
ROSS 2774B2001H
ROSS 2774B2001P
ROSS 2774B2001W
ROSS 2774B2001Y
ROSS 2774B2001Z
ROSS 2774B2002W
ROSS 2774B2003W
ROSS 2774B2003Z
ROSS 2774B2004
ROSS 2774B2005
ROSS 2774B4001
