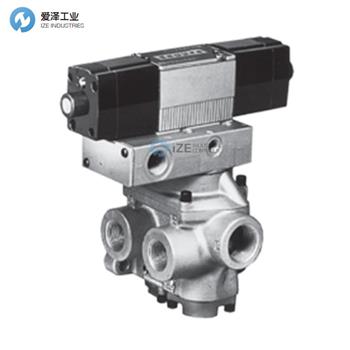

ROSS閥D2776B6013技術規格
DESCRIPTION: | 27 Series, 4/2 Double Direct Solenoid Controlled, Detented, 1" In-Out,1" Exhaust BSPP |
Function | 4/2 Single |
Return Type | Detented |
Default Position | - |
Actuation | Direct Solenoid Controlled |
Port Size (in-Out) | 1 |
Port Size (Exhaust) | 1 |
Port Thread | BSPP |
Basic Size | 3/4 |
Adapter | - |
Cv (In-Out) | 2.1 |
Cv (Exhaust) | 10 |
Construction | Poppet |
Mounting | Inline |
Manual Override | Non-locking |
Connector Type | Hard wired (1/2 inch conduit) |
Certifications | SIL |
Flow Media | Filtered Air |
Inlet Pressure Range | 15 to 150 PSIG (1 to 10 BAR) |
Media Temperature Range | 40 to 175 F (4 to 80 C) |
Ambient Temperature Range | 40 to 175 F (4 to 80 C) |
WEIGHT: | 6.3 lbs (2.86 kg) |
ROSS閥D2776B6013介紹
?” 至 2 ?” 端口尺寸
提升閥
內嵌式
高流量
?” to 2 ?” Port Sizes
Poppet valves
Inline mounted
High Flow Rate
ROSS閥D27系列其他常用型號：
ROSS D2776B2003
ROSS D2776B3003
ROSS D2776B4013
ROSS D2776B4003
ROSS D2776B5003
ROSS D2776B6013
ROSS D2776B6003
ROSS D2776B7003
ROSS D2776B8013
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS閥D2776B6013的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ROSS閥D2776B6013技術參數及介紹
