MAGNATROL電磁閥10MR62規格描述
Specification | |
Pipe Size Inches | 1/2 |
Max.Diff. PSI | 135 |
Valve Port Size | 1/8 |
Watts AC | 25 |
Amps Hold 120-60 | 0.5 |
Amps Inrush 120-60 | 1.5 |
Watts DC | 18 |
Ship Wt. Lbs. | 7 |
MAGNATROL電磁閥10MR62產品介紹
流體溫度：-350°F至400°F | 最大靜壓 - 150 PSI
控制蒸汽，熱液體，熱氣體，低溫技術**以及任何其他不與建筑材料反應且無沉積物的流體的流動。低溫流體包括液氧（-297°F），液氬（-303°F）和液氮（-320°F）。該電磁閥從零到最大壓差運行，如表所示。閥門必須安裝在水平管道中，電磁閥外殼垂直放置在頂部。
Fluid Temp: -350°F to 400°F | Max. Static Pressure - 150 PSI
To control the flow of Steam, Hot Liquids, Hot Gases, Cryogenics** and any other fluids not reactive with construction materials and free of sediment. Cryogenic fluids include Liquid Oxygen (-297°F), Liquid Argon (-303°F) and Liquid Nitrogen (-320°F). This solenoid valve operates from zero to maximum differential pressure indicated in table. Valve must be mounted in horizontal pipe with solenoid enclosure vertical and on top.

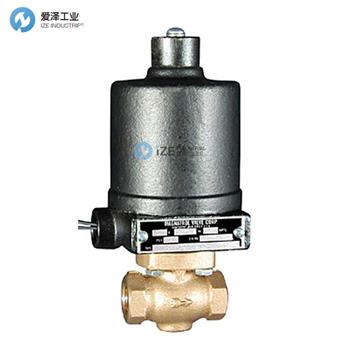

MAGNATROL電磁閥10MR62
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件MAGNATROL 電磁閥部分型號：
MAGNATROL 10MR62
MAGNATROL 10MR41
MAGNATROL 10MR51
MAGNATROL 10MR81
MAGNATROL 10MR61
MAGNATROL 25MR21
MAGNATROL 25MR31
MAGNATROL 25MR41
MAGNATROL 25MR51
MAGNATROL 10MR22
MAGNATROL 10MR42
MAGNATROL 10MR52
MAGNATROL 10MR82
MAGNATROL 10MR62
MAGNATROL 25MR22
MAGNATROL 25MR32
MAGNATROL 25MR42
MAGNATROL 25MR52
MAGNATROL 10MR13
MAGNATROL 10MR33
MAGNATROL 25MR13
MAGNATROL 25MR33
MAGNATROL Bronze Solenoid Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAGNATROL電磁閥10MR62的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAGNATROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

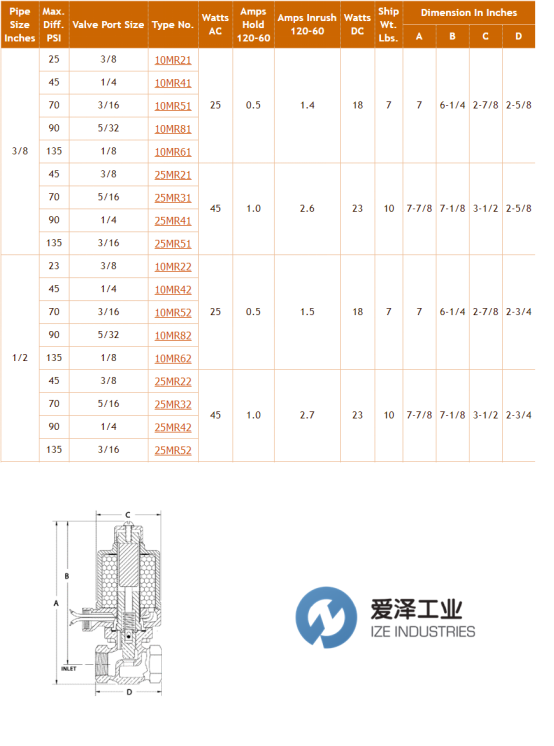

MAGNATROL電磁閥MR系列10MR62產品參數
