VACUUBRAND模擬-I/O-模塊636228產品參數
Technical data | |
Ambient conditions | |
Working temperature | 10-40 °C |
Storage/transport temperature | -10-60 °C |
Max. operating altitude | 3000 m |
Relative humidity | 30-85 %, non-condensing |
Electrical data | |
Input voltage IN; max. | 5-75 VDC |
(galvanically isolated) | 5-50 VAC |
Input impedance | 1-16 kOhm |
Switching voltage OUT | 60 VDC |
Switching current; max. | 40 VAC 2.5 A Potential-free |
Output (galvanically isolated) | semiconductor |
Power consumption, max. | Relay 5 mA |
Power supply via VACUU·BUS? | 24 VDC |
Protection class | IP 20 |
Interface | VACUU·BUS |
Status display | LED red/yellow/green |
VACUUBRAND模擬-I/O-模塊636228產品介紹
數字I / O模塊是用于VACUU·BUS的數字接口兼容真空規和控制器。有一個電隔離輸入門和一個無電位半導體繼電器，用于輸出切換。默認情況下，數字I / O模塊配置為雙向故障指示器模塊，以將真空系統中的故障傳送到過程控制系統，或者在外部故障的情況下中斷過程。當配置為啟動/停止模塊時，可以從PLC啟動和停止過程。此外，數字I / O模塊可被配置為與閥VACUU·BUS不兼容控制。結合真空計DCP 3000可以定義設定點，用于控制例如高真空泵單元，負載鎖等。
性能特點
通過電隔離輸入數字輸入控制信號
通過無電位半導體繼電器的狀態信號的數字輸出
故障指示器來自CVC 3000真空控制器
可配置為遠程（啟動/停止）模塊
可配置為過程停止模塊，帶有可選功能，用于在過程結束時打開繼電器或閥門
The Digital-I/O-Module is a digital interface for VACUU·BUS? compatible vacuum gauges and controllers. There is a galvanically isolated input gate and a potential-free semiconductor relay for output switching. By default the Digital-I/O-Module is configured as bidirectional fault indicator module to communicate malfunctions in a vacuum system to the process control system, or in case of external malfunction to interrupt the process. When configured as Start/Stop module a process can be started and stopped from a PLC. In addition the Digital-I/O-Module can be configured for control of valves not compatible with VACUU·BUS?. In combination with the vacuum gauge DCP 3000 set points can be defined for the control of, e.g., high vacuum pumping units, load locks, etc.
Performance features
digital input of control signals via a galvanically isolated input
digital output of status signals via a potential-free semiconductor relay
fault indicator from and to the CVC 3000 vacuum controller
configurable as remote (Start/Stop) module
configurable as process-stop module with optional function for opening a relay or valve at process end

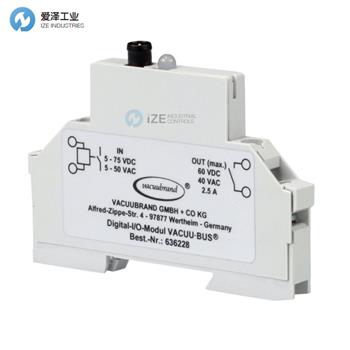

VACUUBRAND模擬-I/O-模塊636228
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件VACUUBRAND 模擬-I/O-模塊部分型號：
VACUUBRAND 636228
VACUUBRAND 674290
VACUUBRAND 674291
VACUUBRAND 674210
VACUUBRAND 674215
VACUUBRAND 674220
VACUUBRAND 674217
VACUUBRAND 699908
VACUUBRAND 612552
VACUUBRAND 636656
VACUUBRAND 636153
VACUUBRAND 636228
VACUUBRAND Analog-I/O-Module VACUU·BUS NEW + ORIGINAL+ ONE YEAR WARRANTY
