FOXBORO變送器IDP10系列產品參數
Specification | |
Communication Protocol: | 4 to 20 mA dc with HART communication |
Remote Communications: | Must not interfere with output |
Accuracy: | Digital Output, Linear: ±0.050% of calibrated span 4 to 20 mA Output, Linear: ±0.060% of calibrated span |
Damping: | Settable for a range of none to 32 seconds |
RFI Protection: | 0.1% error between 27 and 1000 MHz at 30 V/m field intensity |
Span Limits: | 0.5 and 30 inH2O, 3.5 and 200 inH2O, 1 and 30 psi, 10 and 300 psi, 100 and 3000 psi, as specified; or SI and metric equivalents. |
Proof Pressure: | 14,500 psi for standard transmitters |
Mounting: | On process piping, on a manifold, or optional mounting bracket |
Input Connection: | With process connectors to accept 1/4 NPT, 1/2 NPT, Rc 1/4, Rc 1/2, or 1/2 Schedule 80 welding neck; or 1/2 NPT PVDF inserts installed in 316 ss process covers; or prepared for a direct connect seal; or prepared for a single remote capillary connected seal, or two remote capillary connected seals. |
Electronics Housing: | 316 ss, or aluminum housing with epoxy finish |
Modular Electronics: | Enclosed in a NEMA 4X (IEC IP66) housing sealed with O-rings for protection against moisture or other contaminants. Optional Integral LCD indicator with onboard configuration pushbuttons. |
Process Cover: | Traditional Structures |
Sensor Materials: T | Traditional Structure: |
Approvals and Certifications: | Must be suitable for Division 1 hazardous locations, and conform to all applicable European Union Directives. Also versions available to meet Agency flameproof and zone requirements. |
Approximate Mass: (with Process Connectors) | 4.2 kg (9.2 lb), with Traditional Structures; |
Model Code: | I/A Series IDP10 Intelligent d/p Cell Transmitter with HART Communication Protocol, with or without pressure seals, or equivalent. |
FOXBORO變送器IDP10系列產品介紹
Foxboro品牌I / A系列IDP10型是智能的兩線制d / p電池變送器，可提供精確，可靠的壓差測量，并傳輸4至20 mA的輸出信號以及疊加的HART數字信號以進行遠程配置和監控。
The Foxboro brand I/A Series Model IDP10 is an Intelligent, two-wire d/p Cell transmitter that provides precise, reliable, measurement of differential pressure, and transmits a 4 to 20 mA output signal with a superimposed HART digital signal for remote configuration and monitoring.
FOXBORO差壓變送器IDP10系列特征
硅應變計傳感器已成功地在數千個裝置中進行了現場試驗。
簡單、優雅的傳感器包裝，很少有部件達到極高的可靠性。
變送器可用于傳統或低剖面結構。
鋁外殼具有耐用、耐腐蝕的環氧樹脂飾面；也可提供316不銹鋼外殼；均符合NEMA 4X和IP66等級。
可作為密封測量系統提供，具有多種配置的直接連接或毛細管連接密封。
作為選項提供的SIL2認證變送器。
可選的安裝支架組允許對變送器進行管道、表面或歧管安裝。
帶哈特的遠程配置
單回路或多點模式下的通信協議；或通過可選的液晶顯示器進行本地通信。
FM、CSA和ATEX本質安全裝置可使用多標記。用戶確定并在銘牌上永久標記要申請的認證。
用戶輸入的截止點為最大流量的0%至20%。
經CSA認證的雙重密封，符合ANSI/ISA 12.27.01-2003要求。
行業標準316L ss、Co-Ni-Cr、鎳合金（1）、蒙乃爾合金或鉭傳感器材料，取決于變送器結構。
Silicon strain gauge sensors successfully fieldproven in many thousands of installations.
Simple, elegant sensor packaging, with very few parts achieves exceptionally high reliability.

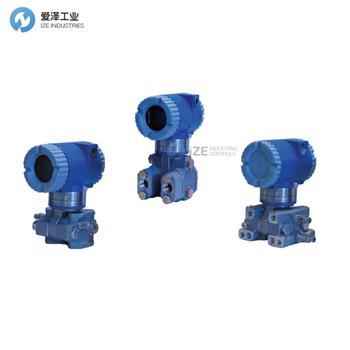

Transmitter available with traditional or low profile structures (see photos above).
Aluminum housing has durable, corrosionresistant epoxy finish; 316 ss housing also available; both meet NEMA 4X and IP66 ratings.
Can be provided as a sealed measurement system with numerous configurations of direct connect or capillary connected seals available.
SIL2-Certified Transmitter offered as an option.
Optional mounting bracket sets allow pipe,surface, or manifold mounting of transmitter.
Remote configuration with HART
communication protocol in a single loop or multidrop mode; or locally via optional LCD indicator.
Multi-marking is available for FM, CSA, and ATEX intrinsically safe installations. The user determines and permanently marks on the data plate the certification to be applied.
User-entered cutoff point from 0 to 20% of maximum flow.
Dual Seal certified by CSA to meet ANSI/ISA 12.27.01-2003 requirements.
Industry standard 316L ss, Co-Ni-Cr, Nickel alloy(1), Monel, or Tantalum sensor materials,depending on transmitter structure.
FOXBORO變送器IDP10系列其他常見型號：
FOXBORO IDP10-T22B01C-L1K1
FOXBORO IDP10-T22B01C-M1L1
FOXBORO IDP10-A22C01F-M1
FOXBORO IDP10-A20B21F-M1
FOXBORO IDP10-T22A21E-M1V
FOXBORO IDP10-TLLC05E-L1B3T
FOXBORO IDP10-D22B21F-C1
FOXBORO IDP10-T22C01F-L1T
FOXBORO differential pressure transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
