OILGEAR放大器控制卡EPC3技術參數
Supply Voltage | +24VDC (18VDC to 36VDC) Supply |
Current (Run) | 100mA + Maximum Driver Current |
Supply Current (Start-Up) | 1200mA |
Maximum Driver Output | +/- 1000 mA (PWM) |
Closed Loop Update Rate | -1600 Hz |
Size | 23 mm wide - 91mm height - 88 mm length |
Ambient Temperature | 0°C to +55°C (+30 to 140°F) |
Hottest Spot Case Temperature | +70°C (+158°F) |
Storage temperature range | -20 to +85°C (0 to 185°F) |
Mounting | IEC 60175:1981/DIN EN 60175:2001 |
Minimum distance to other devices | 30 [mm] (1.18 inch) |

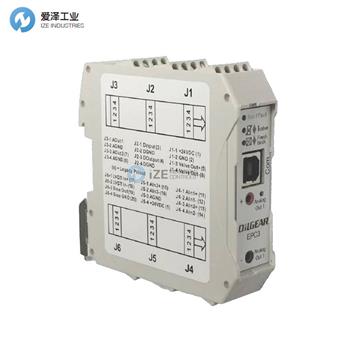

OILGEAR放大器控制卡EPC3產品介紹
帶有放大器和特殊功能的電子控制卡。
EPC3 的單控制軸采用功率放大電路驅動 VS、VV 和 VM 控制的泵和閥門。基本泵控制器配置允許對沖程位置和壓力反饋進行閉環響應。
EPC3 提供多種輸入選項，可靈活控制泵。使用數字輸出信號時，可動態選擇兩個獨立的功能程序。此輸出選項還支持簡單的診斷或信號。
這些放大器控制器卡還包含三個通用模擬輸入。這些輸入可用于輸入指令和壓力反饋信號，包括±10 VDC、0-20 mA 或 4-20 mA。另一個模擬輸入是專用的可微調 LVDT 行程反饋裝置。該模塊允許輸出兩個低功耗可編程信號。
Electronic controller card with amplifier and special features.
With the EPC3, a single control axis uses a power amplified to drive VS-, VV- and VM-controlled pumps and valves. Basic pump controller configuration allows closed-loop responses for stroke position and pressure feedback.
With a variety of input options, the EPC3 allows flexibility for pump control. When using a digital output signal, two independent function programs can be dynamically selected. This output option also allows for simple diagnostic or a watchdog signal.
These amplifier controller cards also include three general-purpose analog inputs. These allow for command and pressure feedback signals, including ±10 VDC, 0-to-20 mA, or 4-to-20mA. An additional analog input is a dedicated fine-adjustable LVDT stroke feedback device. The module allows for two low-power programmable output signals.
OILGEAR放大器控制卡其他常用型號：
OILGEAR EPC3
OILGEAR Amplifier Controller Card NEW + ORIGINAL+ ONE YEAR WARRANTY
