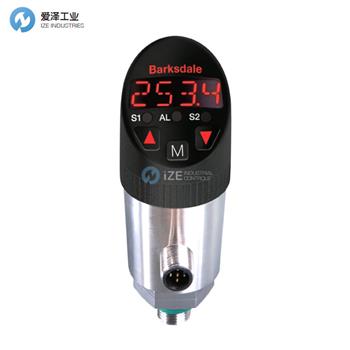

BARKSDALE壓力開關BPS34GVM0020B技術參數

BARKSDALE壓力開關BP3000系列介紹

描述

BPS3000與IO-Link結合，融合了Barksdale在技術產品專業知識和定制能力方面的核心優勢，以及支持工業4.0的前瞻性通信協議，是全球工業市場關鍵愿景之一。Barksdale的BPS3000電子雙壓開關將三種獨立組件（雙壓力開關、壓力變送器和數字壓力表）集成到一個緊湊的外殼中。BPS3000提供多種輸出配置，包括以下組合：1）單或雙壓力開關，2）可選模擬輸出（4-20 mA或0-10 V），以及3）可選數字輸出（IO-Link通信協議）。設定點和死區通過用戶友好的菜單輕松調節，滯后可設置為測量范圍的125%。模擬變送器輸出可從全調范圍的25%擴展到100%。BPS3000配備易于讀取的14段4位LED角度顯示屏，可旋轉至320°。由于具備翻轉功能，BPS3000單元可以倒置安裝而不影響可讀性。BPS3000是需要高精度壓力控制、靈活性和極長使用壽命應用的理想解決方案。

特點

測量范圍：表壓：0 - 9000 psig，絕對壓力：0 - 150 psi

單或雙設定點

模擬輸出：4 - 20 mA或0 - 10 V

外殼等級：Type 4X（IP65）/ Type 6（IP67）

卓越的EMI保護

簡便的導航菜單

適用于快速循環應用

顯示與電子連接：可旋轉320°，IO-Link通信接口，精度0.50%

應用

機床過濾

工業工廠自動化

潤滑監控

泵與壓縮機

注塑成型

Description

BPS3000 with IO-Link combines Barksdale’s core strength of technical product expertise and customization capabilities with the forward looking communication protocol of IO-Link, supporting Industry 4.0, one of the key visions in the global industrial market. Barksdale's BPS3000 Electronic Dual Pressure Switches combine three discrete components (dual pressure switch, pressure transducer, and digital pressure gauge) into one compact package. The BPS3000 is available in multiple output configurations, including combinations of: 1) single or dual pressure switch, 2) optional analog output (4-20 mA or 0-10 V), and 3) optional digital output (IO-Link communication protocol). Setpoints and deadband are easily adjusted using a user-friendly menu where hysteresis can be set up to 125% of its measuring range. Analog transducer outputs are scalable from 25% to 100% of the full adjustable range. The BPS3000 offers an easy to read 4-digit 14-segment LED angled display which is rotatable to 320°. Due to inversion capability, BPS3000 units can be installed upside down without compromising readability. The BPS3000 is an ideal solution for applications requiring precision pressure control, flexibility and extremely long life.

Features

Measuring range: Gauge: 0 - 9000 psig

Absolute: 0 - 150 psi

One or two switch points

Analog output 4 - 20 mA or 0 - 10 V

Enclosure Rating: Type 4X (IP65) / Type 6 (IP67)

Superior EMI protection Simple navigation menu

Suitable for rapid cycling applications

Display & electronic connection: rotatable by 320° IO-Link communication interface 0.50% accuracy

Applications

Machine Tool Filtration

Industrial Factory Automation

Lubrication Monitoring

Pumps and Compressor

Injection Molding

BARKSDALE壓力開關其他常用型號：

BARKSDALE BPS34GVM0005BVP

BARKSDALE BPS34GVM0015PP

BARKSDALE BPS34GVM0020B

BARKSDALE BPS34GVM0050B

BARKSDALE BPS34GVM0050PP

BARKSDALE BPS34GVM0075PAP

BARKSDALE BPS34GVM0150P

BARKSDALE BPS34GVM0200B

BARKSDALE BPS34GVM0400B

BARKSDALE BPS34GVM0400BP

BARKSDALE BPS34GVM0600BP

BARKSDALE BPS34GVM1500P

BARKSDALE BPS34GVM3000P

BARKSDALE BPS34GVM3000PP

BARKSDALE BPS34GVM6000P

BARKSDALE BPS34GVM6000PP

BARKSDALE BPS34GVM9000PP

BARKSDALE BPS31GVM0003PP

BARKSDALE BPS31GVM0010B

BARKSDALE pressure switch NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于BARKSDALE壓力開關BPS34GVM0020B的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for BARKSDALE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
