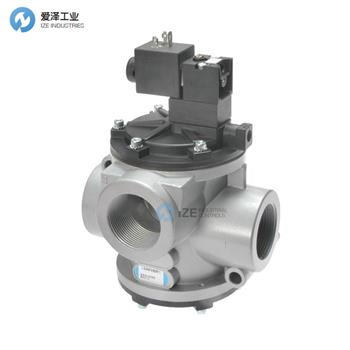

UNIVER閥AG系列技術參數
Ambient temperature | +50 °C |
Fluid temperature | -5 ÷ +60 °C |
Fluid | filtered air 50 μm lubricated or not - vacuum |
Commutation system | poppet |
Ways/Positions | 2/2 NC (upon request), 3/2 NC, 3/2 NO, 3/2 NC-NO |
Pressure | max 10 bar |
Control | indirect vacuum |
Return | automatic by vacuum |
Connections | G1/8 ; G1/4 ; G3/8 ; G1/2 ; G3/4 ; G1 ; G1 1/2 |
Nominal ? (mm) | 5,5 ; 8 ;10 ; 15 ; 19 ; 25 ; 39 |
Valve body | G1/8 ÷ G1 = zamak ; G1 1/2 = aluminium |
Seals | solenoid operated valve, servoassisted by compressed air |
Actuators | G1/8 ÷ G1 = zamak ; G1 1/2 = aluminium |
Spool | G1/8 ÷ G3/8 = aluminium ; G1/2 ÷ G1 1/2 = steel + plastic |
Electropilot | G1/8 G1/4 = U1 ; G1/4 ÷ G1 1/2 = U2 |
Coil | G1/8 G1/4 = DA ; G1/4 ÷ G1 1/2 = DB |
Power consumption | G1/8 G1/4 = 3,5 W (DC) - 5 VA (AC) ; G1/4 ÷ G1 1/2 = 11 W (DC) - 10 VA (AC) |
Connector | G1/8 G1/4 = AM-5110 ; G1/4 ÷ G1 1/2 = AM-5111 |
Voltage | 12 V DC - 24 V DC - 24 V AC - 110 V AC - 230 V AC |
Manual override | with 2 positions screw |
UNIVER閥AG系列其他常用型號：
UNIVER AG-3023
UNIVER AG-3001
UNIVER AG-3009
UNIVER AG-3011
UNIVER AG-3002
UNIVER AG-3010
UNIVER AG-3012
UNIVER AG-3020
UNIVER AG-3040
UNIVER AG-3050
UNIVER AG-3062
UNIVER AG-3021
UNIVER AG-3041
UNIVER AG-3051
UNIVER AG-3063
UNIVER valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于UNIVER閥AG-3023的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for UNIVER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
UNIVER閥AG系列AG-3023技術參數
