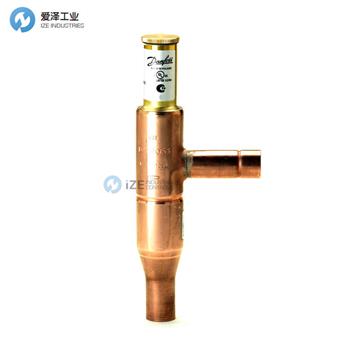

DANFOSS閥KVC15技術參數
Product details | |
Gross weight | 0.382 Kilogram |
Net weight | 0.33 Kilogram |
Volume | 1.18 Liter |
Type | KVC 15 |
Product group | Press. and temp. regul. valves |
Product Name Description | Hot gas bypass regulator |
Approval file name | REFRIGERANT VALVE 53R0 |
China RoHS compliance | Yes |
Contains batteries | No |
Cv value [gal/min] | 1.44 gal/min |
EU RoHS compliance | Yes with exemptions |
EU RoHS exemption clause | 6(c) |
Factory setting [bar] | 2 bar |
Factory setting [psig] | 29 psig |
Flow direction indicator | Engraved 1-way arrow |
Identical product | 034L1047 |
Inlet connection type | Solder, ODF |
Inlet size [in] | 5/8 in |
Inlet size [mm] | 16 mm |
Kv value [m3/h] | 1.25 m3/h |
Lubricants compatibility | Oilfree applications |
Max. test pressure [bar] | 31 bar |
Max. test pressure [psig] | 450 psig |
Max. Working Pressure [bar] | 28 bar |
Max. Working Pressure [psig] | 406 psig |
Medium temperature range [°C] [max] | 130 °C |
Medium temperature range [°C] [min] | -45 °C |
Medium temperature range [°F] [max] | 266 °F |
Medium temperature range [°F] [min] | -49 °F |
Outlet connection type | Solder, ODF |
Outlet size [in] | 5/8 in |
Outlet size [mm] | 16 mm |
P band max. [bar] | 2 bar |
P band max. [psi] | 29 psi |
Packing format | Multi pack |
Product accessories | No |
Quantity per packing format | 12 pc |
Rated cap. R404A/R507A [kW] | 13.6 kW |
Rated cap. R404A/R507A [TR] | 3.93 TR |
Rated capacity R134a [kW] | 9.4 kW |
Rated capacity R134a [TR] | 2.65 TR |
Rated capacity R22 [kW] | 14.9 kW |
Rated capacity R22 [TR] | 4.17 TR |
Rated capacity R407C [kW] | 16.4 kW |
Rated capacity R407C [TR] | 4.5 TR |
Regulation range [bar] [max] | 6 bar |
Regulation range [bar] [min] | 0.2 bar |
Regulation range [psig] Pe [max] | 87 psig |
Regulation range [psig] Pe [min] | 3 psig |
DANFOSS閥KVC系列介紹
KVC熱氣旁通調節器用于調節壓縮機容量，以適應實際蒸發器負載，通過提供熱氣或冷氣作為補充容量。它安裝在制冷系統的高壓側和低壓側之間的旁通管線上，設計用于將氣體直接注入吸氣管。
KVC hot gas bypass regulator are used to adaptcompressor capacity to actual evaporator load by supplying a replacement capacity in form ofhot / cool gas.It is installed in a bypass line between the high- and low-pressure sides of the refrigeration system and is designed for direct gas injection into the suction line.
DANFOSS閥其他常用型號：
DANFOSS KVC15
DANFOSS KVC 12
DANFOSS 034L0141
DANFOSS 034L0142
DANFOSS 034L0143
DANFOSS 034L0144
DANFOSS 034L0146
DANFOSS 034L0147
DANFOSS 034L1043
DANFOSS 034L1044
DANFOSS 034L1046
DANFOSS 034L1047
DANFOSS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS閥KVC15的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
