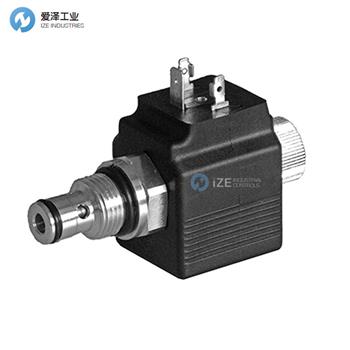

DUPLOMATIC閥KT08-2NO/10N-D24K1技術參數
PERFORMANCES | |
KT08 | |
Maximum operating pressure | 350 bar |
Nominal flow rate | 40 l/min |
Maximum internal leakage at 350 bar | 0.25 cm3/min |
Pressure drops Δp - Q | view points 7, 9, 11, 13, 15 |
Electrical characteristics | view point 16 |
Electrical connections | EN 175301-803 (ex DIN 43650) / AMP Junior / DEUTSCH |
Ambient temperature range | -20 / +50 °C |
Fluid temperature range | -20 / +80 °C |
Fluid viscosity range | 10 ÷ 400 cSt |
Fluid contamination degree | according to ISO 4406:1999 class 20/18/15 |
Recommended viscosity | 25 cSt |
Mass | 0.1 ÷ 0.5 kg |
Surface treatment of the cartridge | zinc coating (salt spray resistance: 96 h) |
DUPLOMATIC電磁換向閥KT08系列介紹
KT08、KT10 和 KT12 閥門是兩通座閥，采用電磁驅動、先導操作的插裝式設計。它們有三種公稱尺寸（SAE 08: 3/4 -16 UNF-2A；SAE 10: 7/8 -14 UNF-2A；SAE 12: 1 1/16 -12 UN-2A），分為常閉 (NC) 或常開 (NO) 兩種類型。
提供單向流動、逆向流動和雙密封設計，最大流量可達 150 升/分鐘。閥門適用于 12V 和 24V 直流電源?？捎玫木€圈電氣連接包括 EN 175301-803、AMP JUNIOR 和 DEUTSCH DT04。
KTM3 是疊加安裝版本的歧管，提供多種線路控制選項。
詳情：
目錄號：43105
閥腔：3/4 -16 UNF-2A，7/8 -14 UNF-2A，1 1/16 -12 UN-2A
安裝方式：螺紋插裝
可堆疊 最大工作壓力：350 巴 最大流量：150 升/分鐘
KT08, KT10 and KT12 valves are 2-port poppet valves, solenoid actuated, pilot operated, cartridge type.
They are available in three nominal sizes (SAE 08: 3/4 -16 UNF-2A; SAE 10: 7/8 -14 UNF-2A; SAE 12: 1 1/16 -12 UN-2A), normally closed (NC) or normally open (NO).
Single flow, reverse flow and double seal designs are available, with maximum flow rate up to 150 l/min.
The valves are available for 12V and 24V DC power supply. EN 175301-803, AMP JUNIOR, DEUTSCH DT04 coil electrical connections are available.
KTM3 is the manifold for stack mounting version, with several options for lines control.
Details
Catalog: 43105
Cavity: 3/4 -16 UNF-2A, 7/8 -14 UNF-2A, 1 1/16 -12 UN-2A
Mounting Style:
screw-in cartridge
stackable
Max Operating Pressure: 350 bar
Max Flow: 150 l/min
DUPLOMATIC閥KT08系列其他常用型號：
DUPLOMATIC KT08-2NO/10N-D24K1
DUPLOMATIC KT08-2NC KT08-3NC/10N V-D12 24
DUPLOMATIC KT08-2NC/10N-D24K1
DUPLOMATIC KT08-2NC/12V-D24K4/CM
DUPLOMATIC KT08-2NO/18N-R230K4/CM
DUPLOMATIC KT08-2NC/12N-D12K1/CM
DUPLOMATIC KT08-2NC/10N-D24K1
DUPLOMATIC VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
