VEEDER ROOT計數器VersaCount系列介紹

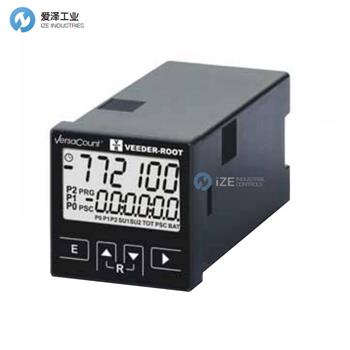

VersaCount VC772 和 VersaCount XP (VC773 和 VC774 系列)
市場上最通用的計數器，尺寸為1/16 DIN (48x48mm)。這款可編程設備可用于計時、計數、速率測量、位置指示、速度控制、長度切割、批量計數、件數計數和體積測量。高精度單元（精確到萬分之一），配有雙行LCD顯示屏。通過三個預設和繼電器保持時間（可編程至10分鐘）的信號增強控制。
VersaCount XP型號可以通過USB或以太網連接進行編程。編程助理軟件允許輕松創建、存檔和打印應用程序。程序可以為多個單元的全球應用創建，也可為與單元序列號關聯的單個文件創建。所有VersaCount XP 773和774型號都允許通過USB存儲器或電纜輕松上傳編程文件。RS232通信也可用來打印單元中的配置和內存。
行業應用
生產批次
包裝
定長切割
卷繞
線圈繞制
定位；混合
混合和分配
轉換；和網絡流程（分切、切割等）。
1/16 DIN 高速多功能電子計數器
提供UL認證和CE合規型號，適用于各種交流/直流電壓
各種顏色的背光LCD顯示屏，緊湊的尺寸
光滑的4鍵觸覺鍵盤接口
標準配置三個固態輸出和一個繼電器輸出，可選2個繼電器輸出
可配置為定時、計數或速率計功能
高達60kHz的計數速度，使得高分辨率編碼器的使用成為可能
插拔式連接器便于安裝
VersaCount VC772, VersaCount XP (VC773 and VC774 Series)
The most versatile counter on the market in a 1 /16 DIN size (48x48mm). The programmable device can be used for timing, counting, rate measurement, position indication, speed control, length cutting, batch counting, piece counting, and volume measurement. High accuracy unit (to one ten-thousandth) with two-line LCD display. Control is enhanced with three presets and signal for relay hold times programmable up to 10 minutes.
VersaCount XP models can be programmed via USB or Ethernet connection. The Programming Assistant software enables applications to easily be created, archived, and printed. Programs can be created for global applications to multiple units or single files tied to the unit serial number. All of the VersaCount XP 773 and 774 models allow easy upload of programming files via USB stick or cable. RS232 comms are also available to print the configuration and memory in the unit.
Industries
Production batching
Packaging
Cut to length
Spooling
Coil winding
Positioning; mixing
Blending and dispensing
Converting; and web processes {slitting, cutting, etc.).
1/16 DIN High Speed Multi-function Electronic Counter
UL Recognized and CE compliant Models available for various AC/DC voltages
Backlit LCD display in various colors, compact size
Smooth 4 button tactile keypad interface
Three solid state outputs and one relay output are standard with option for 2 relay outputs
Configurable for timing, counting, or rate meter functions
Up to 60kHz count speed enables the use of high resolution encoders
Plug in connectors for easy installation
Modern styling
VEEDER ROOT計數器VersaCount系列其他常用型號：
VEEDER ROOT VC772-141
VEEDER ROOT VC772-142
VEEDER ROOT VC772-241
VEEDER ROOT VC772-242
VEEDER ROOT VC772-341
VEEDER ROOT VC772-342
VEEDER ROOT VC772-441
VEEDER ROOT VC772-442
VEEDER ROOT VC772-541
VEEDER ROOT VC772-542
VEEDER ROOT VISICOUNTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VEEDER ROOT計數器VC772-541的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VEEDER ROOT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
VEEDER ROOT計數器VersaCount系列VC772-541技術參數及介紹
