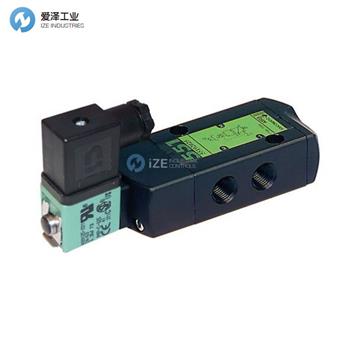

ASCO電磁閥SCG551A001MS技術參數
Body Material | Light Alloy |
Flow (Cv) / Flow (Kv) | 0.69 / 0.60 |
Function | 3/2 Normally Closed - 5/2 Spring Return |
Pipe/Port Type & Size | G 1/4 (ISO 228/1) |
Product Type | Solenoid Valve |
Valve Actuation | Solenoid - Pilot Operated |
Media | Air, Inert Gas |
Min to Max Operating Pressure (Air) | 2 - 10 bar |
Product Weight | 0.34 kg |
Coil Class | F |
Min to Max Ambient Temperature | -25 - 60 °C |
Min to Max Fluid Temperature | -25 - 60 °C |
Orifice Size | 6 mm |
Voltage | 25 Volts AC with 50, 60 Hz |
Watt Rating | 2.5 W |
Connector | Included (EN175301-803, industry standard form B) |
ASCO電磁閥551系列介紹
有兩種版本可供選擇，一種是直接安裝到具有符合 VDI/VDE 3845 標準的 NAMUR 接口的執行器上，另一種是螺紋安裝到管道上
閥體采用鋁、黃銅或 316L 不銹鋼
排氣口可管道化，可更好地抵御惡劣環境
DIN、防水和防爆電磁閥可用于關鍵任務和危險區域
低功率結構非常適合遠程和替代電源位置
整體式通氣塊將執行器的彈簧側通風口排空，防止腐蝕
提供可安裝在任何位置的單電磁閥和雙電磁閥結構
全球防爆認證； ATEX、IEC EX、NEPSI、CUTR、KOSHA、UL、CSA、InMetro
所有 NAMUR 端口均位于同一側，可提供更好的防水、防塵保護
適用于所有防爆電磁閥：Ex d、Ex mb、Ex ia/Ib、Ex e mb、NEMA
提供北極版本，適用于低至 -60°C 的溫度
緊湊型滑閥可從 3/2 轉換為 5/2，采用單流板設計（僅限 551 系列）
Available in two versions, mounted directly to actuators with NAMUR interface per VDI/VDE 3845 or threaded to mount on the pipe
Valve body in Aluminum, Brass, or Stainless steel 316L
Exhaust ports are pipeable, providing better protection against harsh environments
DIN, watertight, and explosion-proof solenoids are available for use in mission-critical and hazardous areas
Low-power constructions are ideal for remote and alternative power locations
Integral breather block vents to spring side of the actuator to exhaust, preventing corrosion
Single- and dual-solenoid constructions are available that mount in any position
Global Ex approvals; ATEX, IEC EX, NEPSI, CUTR, KOSHA, UL, CSA, InMetro
All ports of NAMUR on the same side for a better water , DUST protection
Available will all Explosion proof solenoids: Ex d, Ex mb, Ex ia/Ib, Ex e mb, NEMA
Available in an arctic version, suitable for use in temperatures as low as -60°C
Compact spool valve convertible from 3/2 to 5/2 with a single flow plate design (551 Series only)
ASCO電磁閥551系列其他他常用型號：
ASCO SCG551A001MS
ASCO SCG552A001MS
ASCO SCG553A001MS
ASCO SCG551A002MS
ASCO SCG552A002MS
ASCO SCG553A002MS
ASCO SCG551A065MS
ASCO SCG552A065MS
ASCO SCG553A065MS
ASCO SCG551A066MS
ASCO SCG552A066MS
ASCO SCG553A066MS
ASCO valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ASCO電磁閥SCG551A001MS的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ASCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
