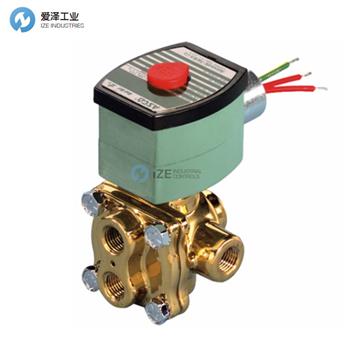

ASCO電磁閥EF8342G001技術參數
Body Material: | Brass |
Input Supply Rating: | 24 VAC 60 Hz |
Media Handled: | Air-Inert Gas, Light Oil, Water |
Port Connection: | 1/4 in. Female Threaded x 1/4 in. Female Threaded x 1/4 in. Female Threaded x 1/4 in. Female Threaded |
Pressure Rating: | 125 psi (Air-Inert Gas), 100 psi (Water/Light Oil) |
Temperature Rating: | 160°F (Fluid) |
Enclosure (NEMA Rating): | NEMA 3/3S/4/4X/6/6P/7/9 |
Product Category: | Valves |
Product Type: | Solenoid Valves |
Voltage: | AC 24 V |
Actuation Type: | Solenoid |
Valve Type: | 4-Way/2-Position, Direct Acting, Single |
ASCO電磁閥8342系列介紹
特征
? 直接作用操作和高流量結構
? 直接作用式高流量滑塊型閥門
? 可選的流量控制可獨立調節氣缸速度，雙向皆可
? 雙電磁閥上的機械保持裝置，即使在斷電、氣動系統或壓力丟失后，仍能保持最后位置
? 無需最小工作壓差即可切換閥門
? 雙電磁閥操作：電磁閥可瞬時（1/10 秒）或連續通電
? 可在任何位置安裝
Features
? Direct acting operation and high flow construction
? Direct acting, high flow slide-style valve
? Optional flow control regulates cylinder Speed independently, in either direction
? Mechanical detent on dual solenoids holds last position, even after loss of electric power, pneumatics or pressure
? No Minimum Operating Pressure Differential required to shift valve
? Dual solenoid operation: solenoid may be energized momentarily (1/10 second) or continuously
? Mountable in any position
ASCO電磁閥8342系列其他常用型號：
ASCO EF8342G001
ASCO 8342G001
ASCO 8342G003
ASCO 8342G020
ASCO 8342G022
ASCO 8342G701
ASCO 8342G703
ASCO 8342G720
ASCO 8342G722
ASCO VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ASCO電磁閥EF8342G001的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ASCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ASCO電磁閥EF8342G001技術參數及介紹
