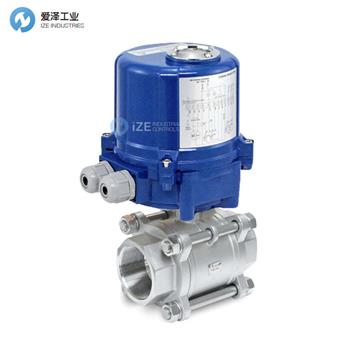

VALVE CONTROL執行器VCQ系列技術參數
Standard specification | |
Enclosure | Weatherproof IP67, NEMA4 4X and 6, O-ring sealed |
Main Power supply | 110/220VAC/1Ph/50/60Hz, 380/440/VAC/3Ph/50/60/Hz ±10%, 24VDC |
Control power supply | 110/220VAC/1Ph/50/60Hz ±10% |
Duty cycle(on-off) | S2: 10Min~30Min |
Duty cycle(modulating) | S4, 30~50%, 300~1200 start/Hour |
Motor | Squirrel Cage induction motor |
Limit switches | 2 each for Open and Close (SPDT 250VAC/10A rating) |
Torque switches | 1 each for Open and Close (SPDT 250VAC/10A rating except for VCQ 0100) |
Stall protection/ set temp. | Built in Thermal protection, Open 150°C±5°C, Close 97°C±15°C |
Travel angle | 90° ± 5° (0° ~ 100°) |
Position indicator | Continuous mechanical indicator with arrow |
Manual override | De-clutchable |
Self locking | Provided by double worm gearing (no brake) |
Mechanical stopper | 1 each for each travel end (Open and Close), external & adjustable |
Space Heater | 5W(110/220VAC) for anti-condensation |
Cable entries | 2-PF 3/4 TAP |
Lubrication | EP type grease |
Terminal block | Screw and Lever Push type (spring loaded) |
Ambient temperature | Basic actuator: -20°C~+70°C |
Ambient humidity | 90%RH Max (Non-Condensing) |
Anti vibration | XYZ 10g. 02~34Hz, 30 minutes |
External coating | Dry powder (Polyester) |
VALVE CONTROL執行器VCQ系列介紹
- 結構緊湊堅固，重量輕，提供高輸出扭矩（最大 9000Nm）。
- 扭矩變化范圍廣（從最小 100Nm 到最大 9000Nm）。
- 內外硬質陽極氧化鋁外殼，外部粉末涂層，可抵御惡劣的工業環境。
- 外殼采用徑向密封件和 O 形圈，提供防水 IP67（Nema 4 和 6）和可選防水 IP68 的保護
- 符合 ISO5211 標準的安裝底座。
- 可拆卸驅動襯套，易于加工和安裝。
- 雙蝸桿傳動提供自鎖（無需制動器）。
- 自動脫鉤手動超控手輪，帶可掛鎖的自動/手動切換桿。
- 可靠的機械扭矩傳感系統，可在過載條件下安全操作。
- 大尺寸窗口和指示器可在遠處提供更好的位置指示。
- 各種本地位置控制選項，可輕松進行現場調試和操作。
- 數字化控制組件。
- Compact and robust construction, light weight providing high output torque (Max 9000Nm).
- Wide range of torque variation (From min 100Nm to max 9000Nm).
- Hard anodized aluminum housing inside and outside with external powder coated against severe industrial environment.
- Enclosure using radial seals & O-rings that provide protection to waterproof IP67 (Nema 4 & 6) and optional watertight IP68
- Mounting base according to ISO5211 standard.
- Removable drive bushing for easy machining and mounting.
- Self-locking provided by double worm gearing (no brake required).
- Auto-declutching manual override handwheel with padlockable auto / manual switchable lever.
- Reliable Mechanical Torque sensing system providing safe operation in overload condition.
- Large size window and indicator provides better position indication from a distance.
- Various Local position control options providing easy commissioning and operation in field.
- Digitalized control component.
VALVE CONTROL執行器VCQ系列其他常用型號：
VALVE CONTROL VCQ160
VALVE CONTROL VCQ0100
VALVE CONTROL VCQ0160
VALVE CONTROL VCQ0240
VALVE CONTROL VCQ0350
VALVE CONTROL VCQ0500
VALVE CONTROL VCQ0800
VALVE CONTROL VCQ1100
VALVE CONTROL VCQ2000
VALVE CONTROL VCQ3000
VALVE CONTROL VCQ6000
VALVE CONTROL VCQ9000
