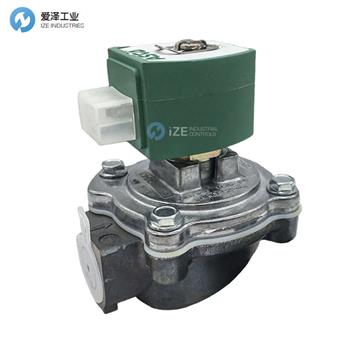

ASCO電磁閥SCG353G047技術參數
Code | SC G353G047 |
Pipe Size | 1.5 |
Orifice Size | 52 mm |
Flow Coefficient Kv | 44 m3/h |
Operating Pressure Differential (bar) | Min.: 0.35 |
ASCO電磁閥353系列介紹
? 隔膜脈沖閥專為除塵器服務應用而設計，結合了高流量、長壽命和極快的開啟和關閉速度，可實現可靠且經濟的運行
? 高流量、角型閥體、無彈簧結構與特殊隔膜組件相結合，可提供除塵器服務應用所需的獨特操作特性
? 整體壓縮配件，安裝快速、簡單、安全
? 內置消音器可降低噪音并防止異物進入閥門
? 整體操作器配有環氧樹脂模制 F 級線圈。根據 ATEX 2014/34/EU 指令，可在同一個基本閥上安裝用于潛在爆炸性環境（氣體和粉塵）的各種可選防水防爆電磁閥
? 閥門滿足所有相關的 EC 指令
? The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
? The high flow, angle type bodies, springless construction, in combination with the special diaphragm assemblies give the unique operating features required for dust collector service applications
? Integral compression fittings for fast, easy, secure installation
? Built-in silencers reduce noise and prevent foreign particles from entering the valve
? The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof and explosionproof solenoids for use in potentially explosive atmospheres (gas & dust) according to Directive ATEX 2014/34/EU can be mounted on the same basic valve
? The valves satisfy all relevant EC directives
ASCO電磁閥353系列其他常用型號：
ASCO G353A043
ASCO G353G043
ASCO G353A044
ASCO G353G044
ASCO G353G047
ASCO G353A047
ASCO G353A050
ASCO G353G050
ASCO G353A051
ASCO G353G051
ASCO G353G060
