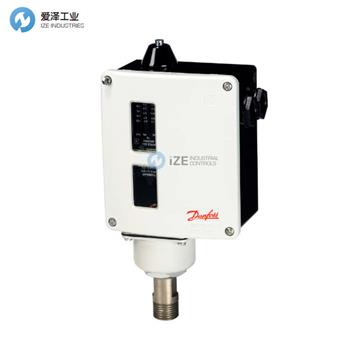

DANFOSS壓力開關RT30AW 017-518766技術參數
Product details | |
Gross weight | 1.028 Kilogram |
Net weight | 0.918 Kilogram |
Volume | 2.685 Liter |
EAN | 5702423120482 |
Ambient temperature range [°C] [max] | 70 °C |
Ambient temperature range [°C] [min] | -40 °C |
Ambient temperature range [°F] [max] | 158 °F |
Ambient temperature range [°F] [min] | -40 °F |
Approval | CCC, CE, EAC, GL, LLC CDC EURO-TYSK, LVD, PED, PZH, RMRS, RoHS, RoHS China, TYSK |
Burst pressure [bar] | 88 bar |
CE evaluated | Yes |
China RoHS compliance | Yes |
Contact function | SPDT |
Contact rating | AC15=3 A, 400 V |
Contact rating @ 250K cycles | AC15=1 A, 400 V |
Contain batteries | No |
Differential [bar] | 0.8 bar |
Differential [psi] | 11.6 psi |
EEE category | 5 small equipment (any external dimension 50 cm) |
Electrical conn. Male/Female | Female |
Electrical connection | Screwed cable entry |
Electrical connection size | 2xPg 13.5 |
Electrical connection standard | DIN 40430 |
Electrical spec. standard | EN 60947-4/-5 |
EN 60947 electrical properties | Insulation: 400V |
EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2 |
Enclosure rating IP | IP66 |
EU RoHS compliance | Out of scope |
Fluid Group | 1 |
In scope of WEEE | Yes |
Max. test pressure [bar] Pe | 25 bar |
Max. test pressure [psig] | 363 psig |
Max. Working Pressure [bar] | 22 bar |
Max. Working Pressure [psig] | 320 psig |
Packing format | Multi pack |
PED category | IV |
Pressure connection size | 1/2 |
Pressure connection standard | ISO 228-1 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure sensing element | Bellows |
Product accessories | Switches accessories |
Product description | Pressure Switch |
Product group | Switches and thermostats |
Product Name Description | Pressure switch |
Quantity per packing format | 15 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R11, R12, R123, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C, R717 |
Regulation range [bar] Pe [max] | 10 bar |
Regulation range [bar] Pe [min] | 1 bar |
Regulation range [psig] Pe [max] | 145 psig |
Regulation range [psig] Pe [min] | 14.5 psig |
Reset function | Auto |
SCIP dossier no. | 54f3e4b2-77e8-4825-a1c1-c3d5ba584171 |
Serviceable | Contact systems |
Type | RT30AW |
UK RoHS compliance | Out of scope |
UL approved refrigerants | R11, R12, R123, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R507C, R717 |
DANFOSS壓力開關RT系列介紹
RT 壓力開關包含一個壓力控制的單極轉換開關，其觸點位置取決于連接端口中的壓力和設定值。
RT 系列包括壓力開關、差壓開關和用于中性區調節的壓力開關，它們均適用于工業和船舶領域。該系列還包括專用于蒸汽鍋爐廠的安全壓力開關。
對于從安全和經濟角度來看操作特別重要的安裝，建議使用故障安全壓力開關。
如果操作僅涉及幾個開關周期或信號電流和電壓，則還建議在此類安裝中使用鍍金觸點。
特點：
? 設計簡單
? 高精度
? 高重復性
? 使用壽命長
? 獲得所有主要船舶認證
? 安全完整性等級：根據 IEC 61508 為 SIL 2
RT pressure switches incorporate a pressure controlled, single-pole change over swich where the contact position depends on the pressure in the connection port and the set value.
The RT series consists of pressure switches, di€erential pressure switches and pressure switches for neutral zone regulation, all for general use within the industrial and marine segments. The series also covers safety pressure switches dedicated for steam boiler plants.
For installations in which operation is particularly critical from safety and economic points of view, the use of fail-safe pressure switches is recommended.
The use of gold-plated contacts is also recommended in such installations, provided operation involves only a few switching cycles or signal currents and voltages.
Features:
? Simple design
? High accuracy
? High repeatability
? Long operation life time
? Available with all major marine approvals
? Safety Integrity Level: SIL 2 according to IEC 61508
DANFOSS壓力開關RT系列其他常用型號：
DANFOSS RT30AS 017-518966
DANFOSS RT6AE 017-502166
DANFOSS RT1A 017-500166
DANFOSS RT30AB 017-518866
DANFOSS RT32B 017-524866
DANFOSS RT1A 017-501966
DANFOSS RT1A 017-502766
DANFOSS RT110L 017L001566
DANFOSS RT30AW 017-518766
DANFOSS RT6AEW 017-513866
DANFOSS RT32W 017-524766
